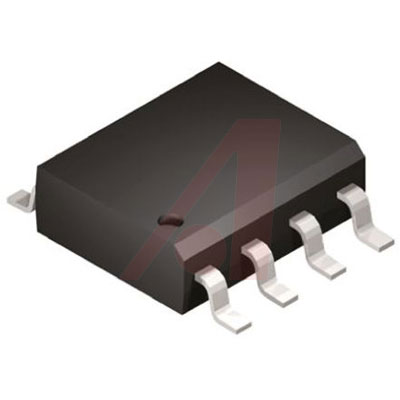

EXAR SP2525A-1EN-L 芯片, 电源开关
Use this usb high side power switch USB powered Ethernet switch from EXAR to control which one of your devices draws power. Using the part will provide the power your application needs by requiring a voltage only of 3 V and not exceeding a voltage of 5.5 V. Its current limit is 1 A. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
艾睿:
USB Power SW Hi Side Single 5.5V 1A 8-Pin SOIC N
Allied Electronics:
EXAR SP2525A-1EN-L, USB Power Switch, High Side, 100mOhms, 3 V min., 8-Pin SOIC
Chip1Stop:
USB Power SW Hi Side Single 5.5V 1A 8-Pin SOIC N
Verical:
USB Power SW Hi Side Single 5.5V 1A 8-Pin SOIC N
DeviceMart:
IC USB PWR SW HIGH-SIDE 8NSOIC
输出接口数 1
输入电压DC 5.00 V
针脚数 8
耗散功率 500 mW
上升时间 1000 µs
输入电压Max 5.5 V
输入电压Min 3 V
输出电流Max 500 mA
下降时间 0.7 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 3V ~ 5.5V
输入电压 5 V
引脚数 8
封装 SOIC-8
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Discontinued at Digi-Key
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SP2525A-1EN-L Exar Corporation 艾科嘉 | 当前型号 | 当前型号 |
SP2525A-1EN-L/TR 艾科嘉 | 类似代替 | SP2525A-1EN-L和SP2525A-1EN-L/TR的区别 |
