SIP-08T

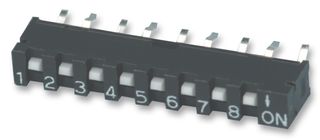

SIP-08T图片1

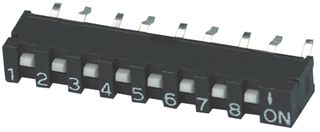

SIP-08T图片2
SIP-08T图片3
SIP-08T图片4
SIP-08T概述

MULTICOMP  SIP-08T  DIP / SIP开关, SIP系列, SPST, 通孔安装, 8 电路, 50 V

The is a SIL Switch with SPST contact configuration and through-hole switch mounting. It features splay terminals allow for automatic insertion by IC insertion machine, insert moulding of terminals and ultrasonic welding.

.
High density and thinner outline to reduce package space
.
High pressure contact structure to prevent vibration shock
.
Double contacts offer high reliability
.
Low contact resistance
.
Self clean contact area
SIP-08T中文资料参数规格
技术参数

触点电镀 Gold over Nickel

绝缘电阻 100 MΩ

电容 5.00 pF

触点类型 SPST

电路数 8

易燃性等级 UL 94 V-0

接触电阻 100 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 5.00 mm

物理参数

材质 Nylon

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买SIP-08T
型号: SIP-08T
制造商: Multicomp
描述:MULTICOMP  SIP-08T  DIP / SIP开关, SIP系列, SPST, 通孔安装, 8 电路, 50 V
替代型号SIP-08T
型号/品牌 代替类型 替代型号对比

SIP-08T

Multicomp

当前型号

当前型号

SIP-08A

Multicomp

功能相似

SIP-08T和SIP-08A的区别
