2.7 x 3.2 mm 1210 160° 无色 透明 10 mcd 2/2.2 V PCB 贴片式 表面贴装 LED

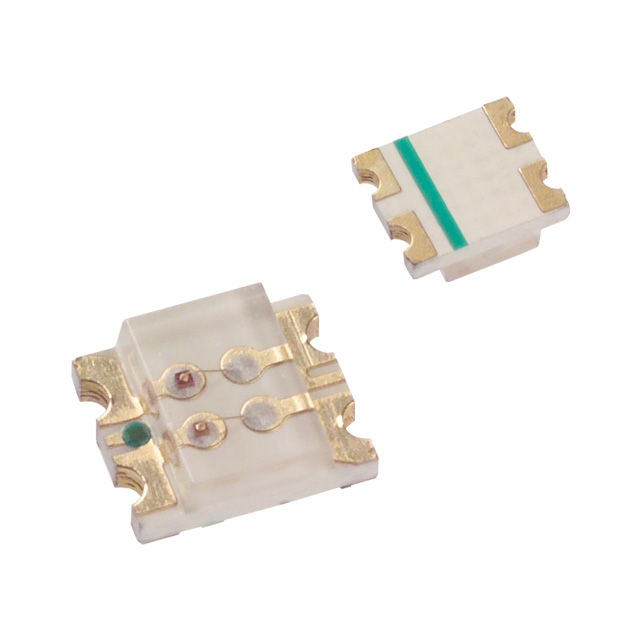

The is a red/green surface mount Discrete made of GaAsP/GaP dice and clear epoxy lens. The surface mount LED features state-of-the-art and high brightness chip technology, lead-frame/lens casting reliability, 635nm peak wavelength and 160° viewing angle. The LED is ideal for use in board or panel indication or illumination, annunciator and control panels, telecom switches, central station equipment and large panel indicators.
- .
- Easy-to-solder leads, tin finish
- .
- Half moon solder terminals
- .
- Custom shapes, easily tooled, low minimum
工作电压 2V, 2.2V
额定功率 65 mW
正向电压 2.2 V
波长 635nm Red, 565nm Green
发光强度 10 mcd
视角 160°
透镜样式 Non-Diffused
峰值波长 565nm, 635nm
耗散功率 65 mW
测试电流 20 mA
正向电流 150 mA
正向电压Max 2.6 V
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 65 mW
安装方式 Surface Mount
引脚数 4
封装 1210
长度 3.2 mm
宽度 2.7 mm
高度 1.10 mm
封装 1210
颜色 Green, Red
工作温度 -25℃ ~ 85℃
外观颜色 Clear
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信与网络, LED Lighting, 工业, Communications & Networking, Industrial, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8541402000
