SV60

LUMBERG  SV60  连接器, DIN音频/视频, 插头, 6 触点, 电缆安装, 金属主体, 镀银触芯

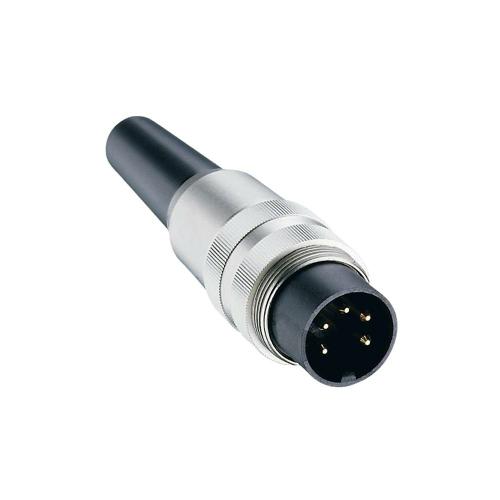

The from is a 6 pole plug circular connector with threaded joint. This is a straight version plug with ground contact and solder terminals and has a long bend protection TPE. The SV40 complies with IEC 61076-2-106.

.

Rated current of 5A

.

Rated voltage of 250VAC

.

Wire cross section area of 0.75mm²

.

Insulation material is polyamide GF

.

Operating temperature range from -40°C to 85°C

.

CuZn, silver and flash gold plated contact

.

CuZn, pre-nickel and tin plated grounding spring

.

CuZn, nickel plated housing and Knurled nut

.

IP40 protection

.

Mating with sockets KFR, KFV, KGR, KGV, KV, WKV
