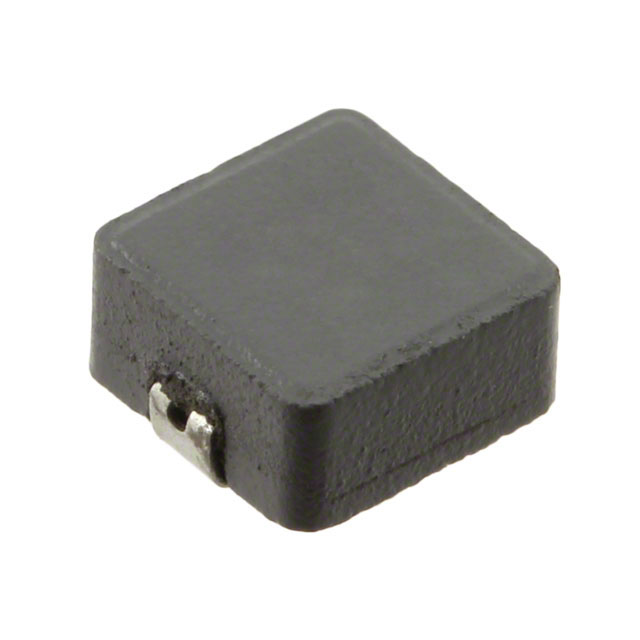

BOURNS SRP5030T-1R5M 表面贴装功率电感器, SRP5030T系列, 1.5 µH, ± 20%, 屏蔽, 0.025 ohm, 6 A
SRP5030T 系列磁性屏蔽线绕扼流圈
屏蔽结构
铁粉核芯
高饱和电流
应用包括用于便携式设备的直流/直流转换器和电源
得捷:
FIXED IND 1.5UH 6A 25 MOHM SMD
立创商城:
1.5uH ±20% 6A 6mΩ
欧时:
Bourns SRP5030T 系列 屏蔽 铁芯材 1.5 μH 绕线贴片电感器 SRP5030T-1R5M, ±20%容差, 6A Idc
e络盟:
功率电感SMD, 1.5 µH, 6 A, 屏蔽, 10 A, SRP5030T系列, 5.7mm x 5.2mm x 2.8mm
艾睿:
This power SRP5030T-1R5M surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 6Typ A with a maximum resistance of 25m Ohm. It has a tolerance of 20%. This product is 6 mm long, 3 mm tall and 5.4 mm deep. It has an inductance of 1.5u H. This device utilizes wirewound technology. Its test frequency is 100K Hz.
Allied Electronics:
Inductor; Power; Shielded; 1.5uH; 6A; 20%
安富利:
Ind Power Shielded 1.5uH 20% 100KHz Powdered Iron 6A T/R
Chip1Stop:
Ind Power Shielded/Molded Wirewound 1.5uH 20% 100KHz Powdered Iron 6A T/R
Verical:
Inductor Power Shielded/Molded Wirewound 1.5uH 20% 100KHz Powdered Iron 6A 0.025Ohm DCR 2020 T/R
Newark:
# BOURNS SRP5030T-1R5M Surface Mount Power Inductor, SRP5030T Series, 1.5 µH, 6 A, 10 A, Shielded, 0.025 ohm
额定电流 6 A
容差 ±20 %
电感 1.5 µH
自谐频率 100 kHz
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤25 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.025 Ω
安装方式 Surface Mount
引脚数 2
封装 2020
长度 6 mm
宽度 5.4 mm
高度 3 mm
封装 2020
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRP5030T-1R5M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
IHLP2020CZER1R5M01 威世 | 功能相似 | SRP5030T-1R5M和IHLP2020CZER1R5M01的区别 |
