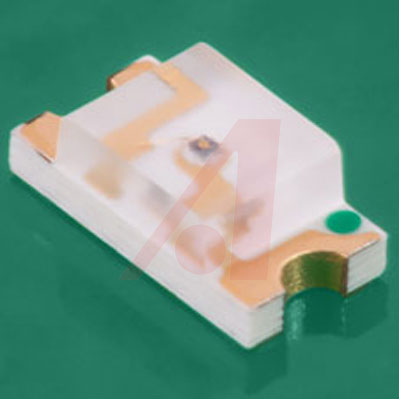

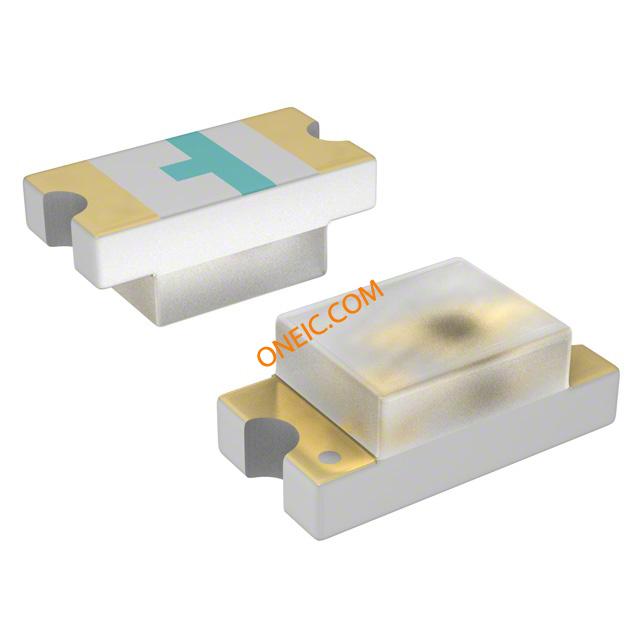

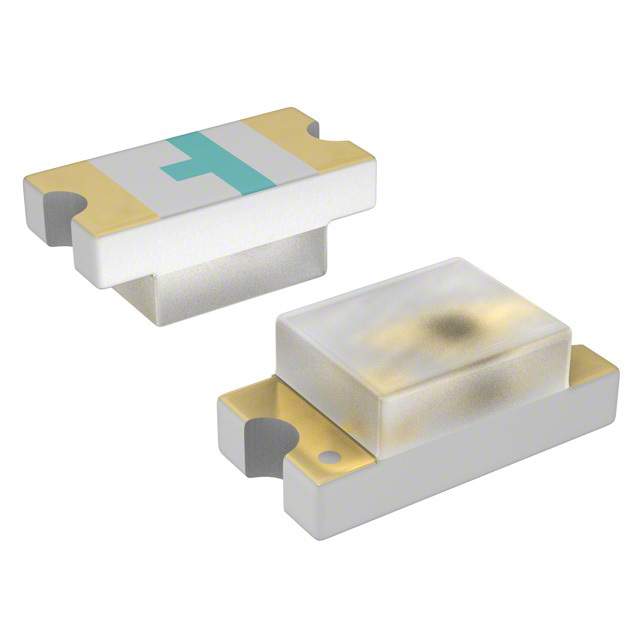

BIVAR SM0603UYC 发光二极管, 黄色, 60MCD, 588NM
** SLP Series Right Angle Light Pipes**
The SLP series from Bivar are a family of right angle light pipes. These rigid light pipes are made from a clear polycarbonate material. They are available with a 3 mm round lens with either a domed or flat face. The SLP light pipes are mounted onto the PCB using push-fit lugs in close proximity to the .
额定功率 78 mW
正向电压 2.1 V
波长 592 nm
发光强度 60 mcd
视角 130°
峰值波长 593 nm
耗散功率 78 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.6 V
正向电流Max 30 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
耗散功率Max 78 mW
安装方式 Surface Mount
引脚数 2
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.60 mm
封装 0603
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM0603UYC Bivar | 当前型号 | 当前型号 |
5988040107F Dialight | 功能相似 | SM0603UYC和5988040107F的区别 |
