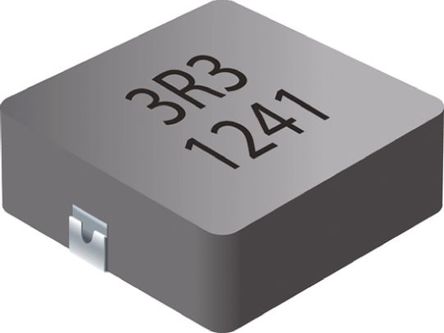

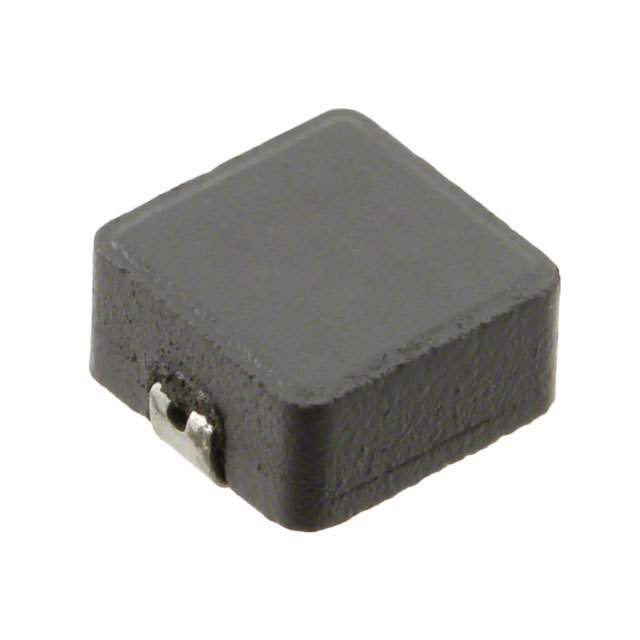

BOURNS SRP5030T-1R2M. 电感, 屏蔽, 1.2uH, 11A, SMD
SRP5030T 系列磁性屏蔽线绕扼流圈
屏蔽结构
铁粉核芯
高饱和电流
应用包括用于便携式设备的直流/直流转换器和电源
得捷:
FIXED IND 1.2UH 6.5A 16 MOHM SMD
欧时:
Bourns SRP5030T 系列 屏蔽 铁芯材 1.2 μH 绕线贴片电感器 SRP5030T-1R2M, ±20%容差, 6.5A Idc
立创商城:
1.2uH ±20% 6.5A 6.5mΩ
e络盟:
功率电感SMD, 1.2 µH, 6.5 A, 屏蔽, 11 A, SRP5030T系列, 5.7mm x 5.2mm x 2.8mm
艾睿:
This power SRP5030T-1R2M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 6.5Typ A with a maximum resistance of 16m Ohm. It has an inductance of 1.2u H. This device is made with wirewound technology. This product is 6 mm long, 3 mm tall and 5.4 mm deep. Its test frequency is 100K Hz.
Allied Electronics:
SRP5030T Series Wire-wound SMD Inductorw/ Iron Core, 1.2 uH +/-20% 6.5A Idc
安富利:
Ind Power Shielded 1.2uH 20% 100KHz Powdered Iron 6.5A T/R
Chip1Stop:
Ind Power Shielded/Molded Wirewound 1.2uH 20% 100KHz Powdered Iron 6.5A T/R
Verical:
Inductor Power Shielded/Molded Wirewound 1.2uH 20% 100KHz Powdered Iron 6.5A 0.016Ohm DCR 2020 T/R
Newark:
# BOURNS SRP5030T-1R2M Surface Mount Power Inductor, SRP5030T Series, 1.2 µH, 6.5 A, 11 A, Shielded, 0.016 ohm
额定电流 6.5 A
容差 ±20 %
电感 1.2 µH
自谐频率 100 kHz
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 0.016 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.016 Ω
安装方式 Surface Mount
引脚数 2
封装 2020
长度 5.7 mm
宽度 5.4 mm
高度 3 mm
封装 2020
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRP5030T-1R2M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SRP5030TA-1R2M 伯恩斯 | 类似代替 | SRP5030T-1R2M和SRP5030TA-1R2M的区别 |
