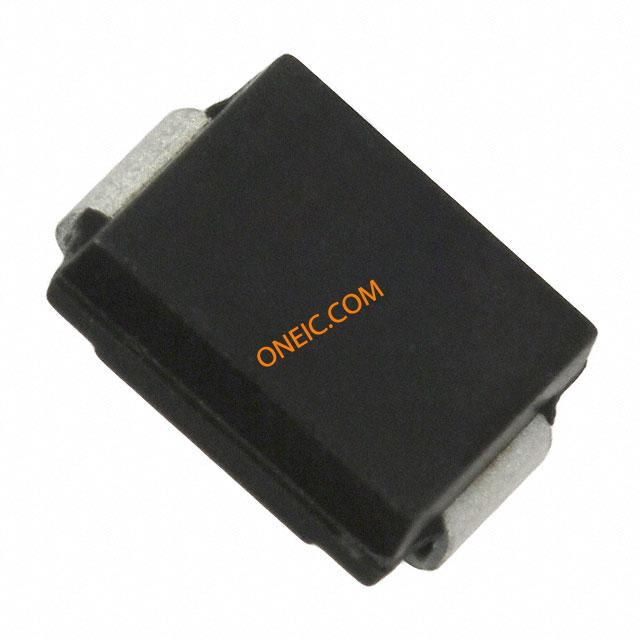

BOURNS SMLJ7.5A TVS二极管, AEC-Q258, SMLJ系列, 单向, 7.5 V, 12.9 V, DO-214AB, 2 引脚
The SMLJ series Transient Voltage Suppressor Diode used for surge and ESD protection applications. The device offers a choice of working peak reverse voltage from 5V up to 170V and breakdown voltage up to 200V. Typical fast response times are less than 1-picosecond for unidirectional devices and less than 5-picosecond for bidirectional devices from 0V to minimum breakdown voltage. It conforms to JEDEC standards, is easy to handle with standard pick and place equipment and the flat configuration minimizes roll away.
工作电压 3.5 V
电路数 1
针脚数 2
耗散功率 3 kW
钳位电压 12.9 V
测试电流 1 mA
最大反向击穿电压 9.21 V
脉冲峰值功率 3 kW
最小反向击穿电压 8.33 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

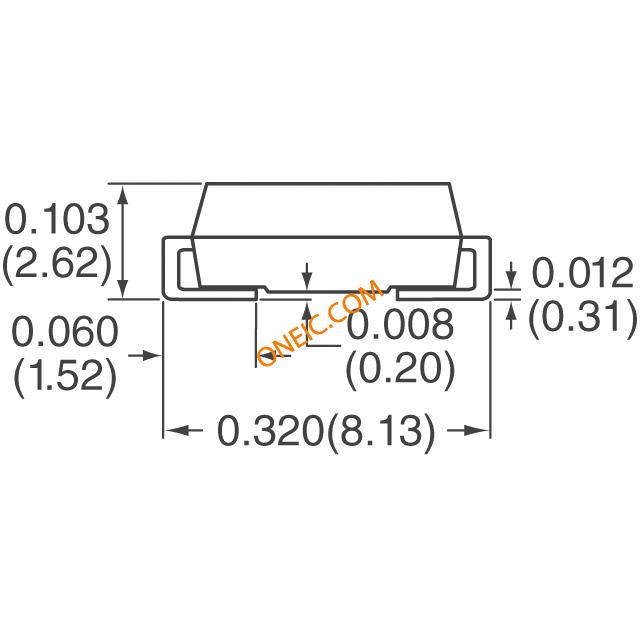

封装 DO-214AB-2
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMLJ7.5A Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SMLJ7.5A-TP 美微科 | 功能相似 | SMLJ7.5A和SMLJ7.5A-TP的区别 |
SMLJ7.5-TP 美微科 | 功能相似 | SMLJ7.5A和SMLJ7.5-TP的区别 |
