SSQ-110-01-T-S

Conn Socket Strip SKT 10POS 2.54mm Solder ST Thru-Hole

10 Position Receptacle Connector 0.100" 2.54mm Through Hole Tin

欧时:
Tiger Buy Skt Strip w/t sq. Tails 0.100"

得捷:
CONN RCPT 10POS 0.1 TIN PCB

艾睿:

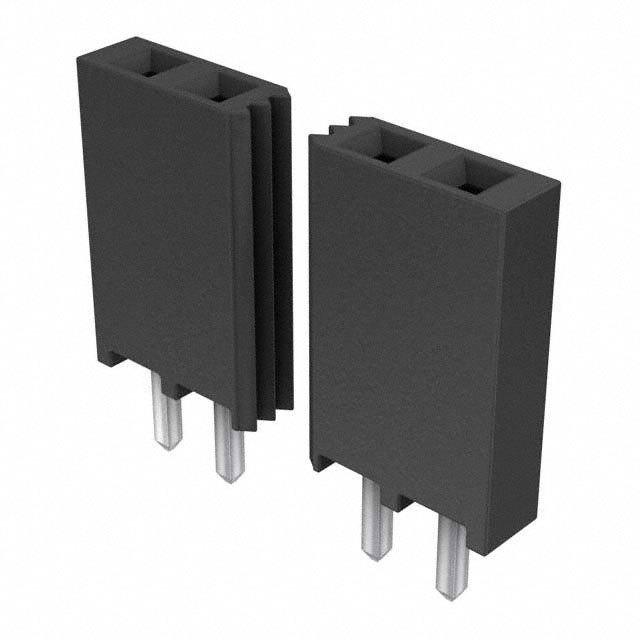

Look no further than the socket strip SSQ-110-01-T-S header connector from Samtec, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 10 contacts that are made out of phosphor bronze and plated with matte tin over nickel. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a socket type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. SSQ-110-01-T-S is housed in black liquid crystal polymer. This product is 25.91 mm long, 8.51 mm tall and 2.41 mm deep.
