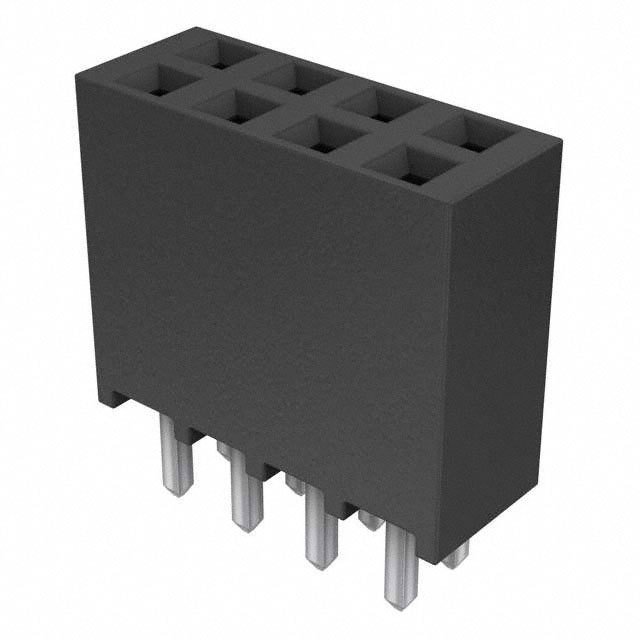

SSQ-104-01-T-D

Conn Socket Strip SKT 8POS 2.54mm Solder ST Thru-Hole

8 Position Receptacle Connector 0.100" 2.54mm Through Hole Tin

欧时:
Tiger Buy Skt Strip w/t sq. Tails 0.100"

得捷:
CONN RCPT 8POS 0.1 TIN PCB

艾睿:
As an added safety precaution, the socket strip SSQ-104-01-T-D header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 8 contacts that are made out of phosphor bronze and plated with matte tin over nickel. This is a 2-row connector. It has a socket type gender. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. SSQ-104-01-T-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 105 °C. This product is 10.67 mm long, 8.51 mm tall and 4.95 mm deep.

安富利:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Electro Sonic:
Conn Socket Strip SKT 8 POS 2.54mm Solder ST Thru-Hole
