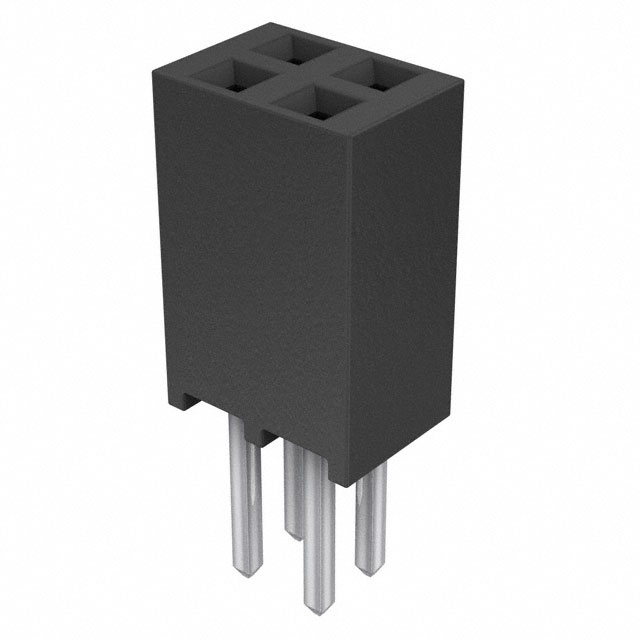

SSQ-102-02-S-D

Conn Socket Strip SKT 4POS 2.54mm Solder ST Thru-Hole

4 Position Receptacle Connector 0.100" 2.54mm Through Hole Gold

得捷:
CONN RCPT 4POS 0.1 GOLD PCB

艾睿:
Support physical configuration options for jumper posts by mounting this socket strip SSQ-102-02-S-D header connector from Samtec. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a socket type gender. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product is 5.59 mm long, 8.51 mm tall and 4.95 mm deep. SSQ-102-02-S-D is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole
