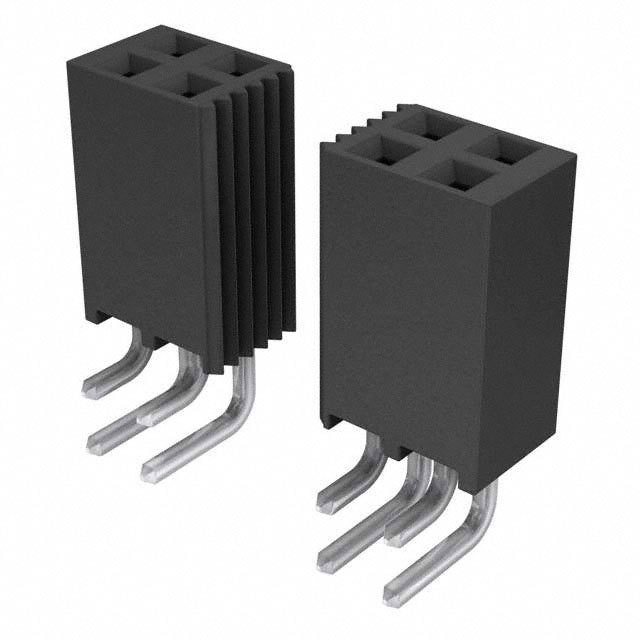

SSQ-111-02-T-D-RA

集管和线壳 .100" Tiger Buy Socket Strip, Square Tail

22 Position Receptacle Connector 0.100" 2.54mm Through Hole, Right Angle Tin

得捷:
CONN RCPT 22POS 0.1 TIN PCB R/A

贸泽:
集管和线壳 .100" Tiger Buy Socket Strip, Square Tail

艾睿:
Thanks to Samtec&s;s socket strip SSQ-111-02-T-D-RA header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This SKT connector&s;s 22 contacts that are made out of phosphor bronze and plated with matte tin over nickel. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a socket type gender. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. SSQ-111-02-T-D-RA is housed in black liquid crystal polymer. This product is 28.45 mm long, 4.95 mm tall and 12.57 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Socket Strip SKT 22 POS 2.54mm Solder RA Thru-Hole
