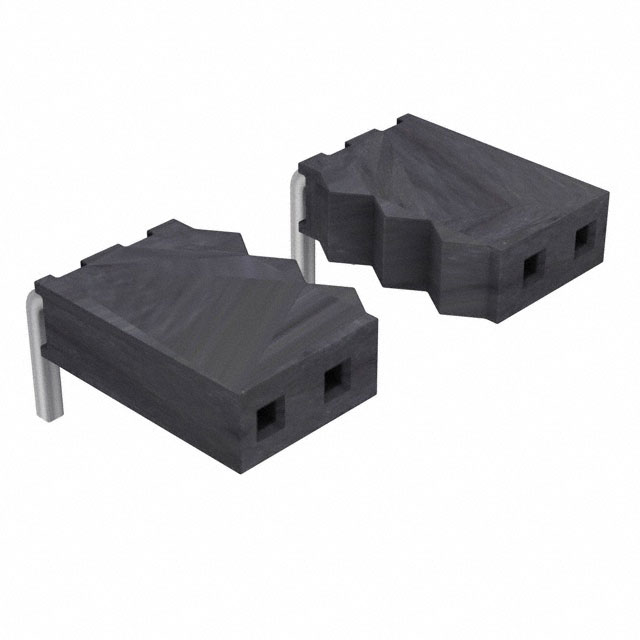

Conn Socket Strip SKT 12POS 2mm Solder RA Thru-Hole Tube
12 Position Receptacle Connector 0.079" 2.00mm Through Hole, Right Angle Gold
欧时:
Rugged PCB Skts 2.00mm
得捷:
CONN RCPT 12P 0.079 GOLD PCB R/A
艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this socket strip SQT-112-01-L-S-RA header connector from Samtec on your PCB today! This SKT connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. Its pitch is 2 mm. It has a maximum voltage rating of 450 VAC. It has a socket type gender. It has a right angle body orientation. This device has a maximum current rating of 5.1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 24.3 mm long, 2 mm tall and 7.62 mm deep. It uses the solder termination method. SQT-112-01-L-S-RA is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.
触点数 12
触点电镀 Gold
额定电压AC 450 V
额定电流 5.1A/触头
排数 1
针脚数 12
额定电流Max 5.1A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 281 VAC
额定电压 450 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚间距 2.00 mm
长度 24.3 mm
宽度 6.35 mm
高度 2 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
