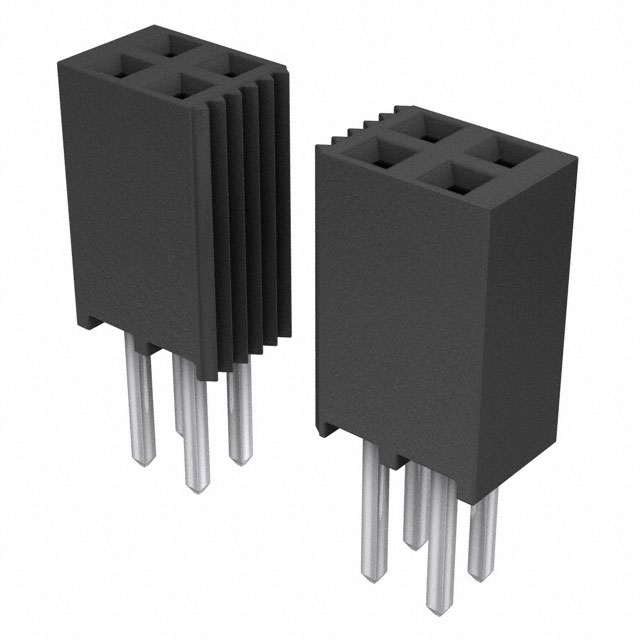

SSQ-116-02-S-D

Conn Socket Strip SKT 32POS 2.54mm Solder ST Thru-Hole

32 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN RCPT 32POS 0.1 GOLD PCB

艾睿:
Use this socket strip SSQ-116-02-S-D header connector from Samtec where IDC ribbon cables are used. This SKT connector&s;s 32 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. This product is 41.15 mm long, 8.51 mm tall and 4.95 mm deep. SSQ-116-02-S-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.
