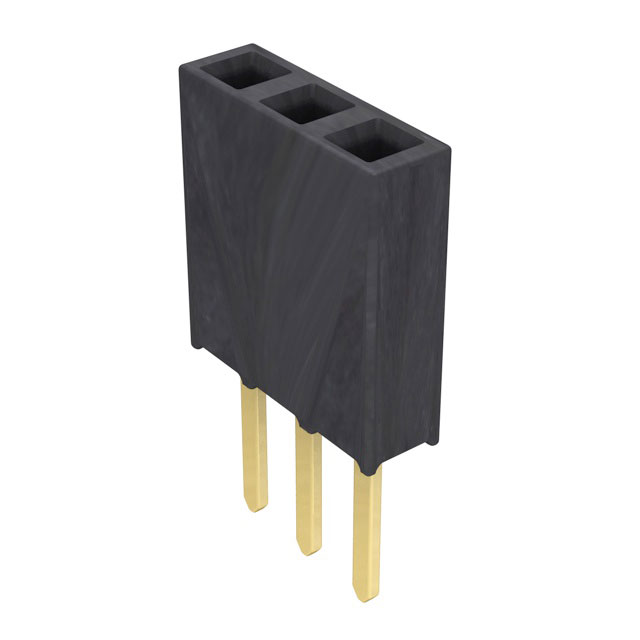

SSW-103-02-G-S

Conn Socket Strip SKT 3POS 2.54mm Solder ST Thru-Hole

3 Position Receptacle Connector 0.100" 2.54mm Through Hole Gold

欧时:
Tiger Buy Skt Strip w/t PCB Tails 0.100"

得捷:
CONN RCPT .100" 3POS SNGL GOLD

立创商城:
2.54mm

艾睿:
Look no further than the socket strip SSW-103-02-G-S header connector from Samtec, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 3 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. It has a socket type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 5.7 A/contact. SSW-103-02-G-S is housed in black liquid crystal polymer. It uses the solder termination method. This product is 8.13 mm long, 8.51 mm tall and 2.41 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 3 POS 2.54mm Solder ST Thru-Hole
