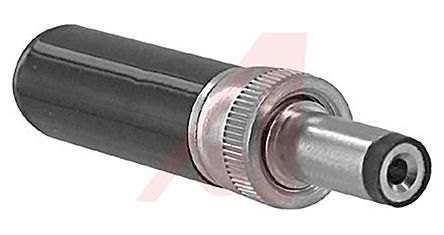

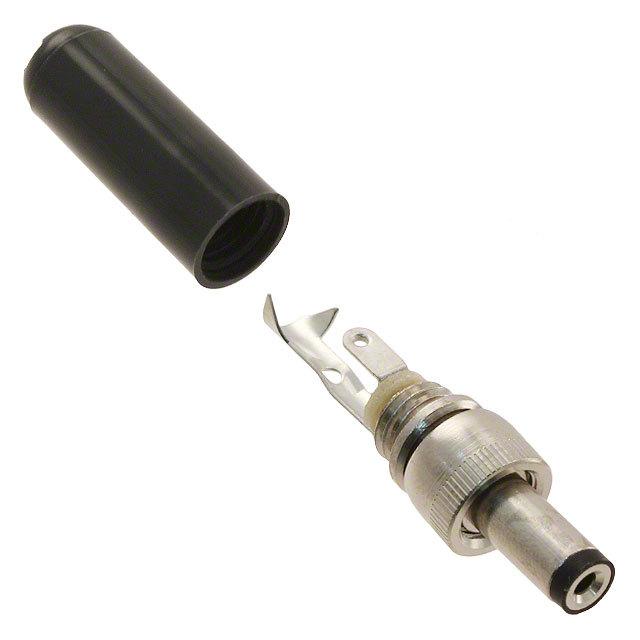

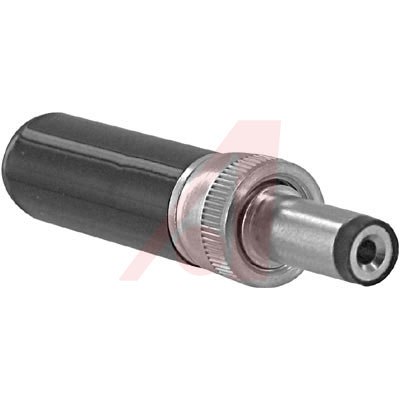

SWITCHCRAFT S761K 直流电源连接器, 插头, 5 A, 12 mm, 电缆安装, 2 mm
Switchcraft 2.1mm 和 2.5mm 底盘安装电源插座
Switchcraft 直向直流电源插座具有螺纹衬套，允许使用标准和锁定电源插头，适用于面板安装应用，配有六角螺母和垫圈，提供 2.1mm 和 2.5mm 型号。
### 特点和优势
直角电源插座，用于 PC 安装
弯曲接线端子，允许咬接 PC 面板安装
末端开口中心插针外形可牢固固定接头
额定电流：5A（12V 直流时）
最大触点电阻 0.01 欧姆
最大介电耐压 500 V 交流
10,000 次接合以上
面板厚度 3.1mm
欧时:
Black Thermoplastic Mini Connector Plug
得捷:
CONN PWR PLUG 2X5.5MM SOLDER
贸泽:
直流电源连接器 DC PWR PLG 0.080" 1.8"L, BLK HAND. LCK
e络盟:
直流电源连接器, 插头, 5 A, 12 mm, 电缆安装, 焊接
艾睿:
The S761K power connector from Switchcraft is perfect for powering your circuit because it comes with the least amount of losses. This F connector&s;s 2 contacts that are made out of copper alloy and plated with tin. It has a straight body orientation. This connector has a single port. It has a female type gender. This device has a maximum current rating of 5 A. S761K is housed in plastic. It has 2 terminals. This product is 45.72 mm long with a diameter of 10.5 mm.
Allied Electronics:
Conn; AV; Power; Plug; Mini; 2.03mm, IDPinSize; Straight; Insulated; Locking; Black
Jameco:
Connector Power Female 2 Position Straight Cable Mount 2 Terminal 1 Port
安富利:
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
Verical:
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
Newark:
# SWITCHCRAFT S761K DC Power Connector, Plug, 5 A, 12 mm, Cable Mount, 2 mm
MASTER:
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
Online Components:
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
Electro Sonic:
Conn Power F 2 POS ST Cable Mount 2 Terminal 1 Port
Win Source:
CONN PWR PLUG 2X5.5MM SOLDER / Power Barrel Connector Plug 2.00mm ID 0.079", 5.50mm OD 0.217" Free Hanging In-Line
