LUMEX SSL-LX203CSRT 发光二极管, QuasarBrite, 红色, 通孔安装, T-2, 20 mA, 1.7 V, 660 nm

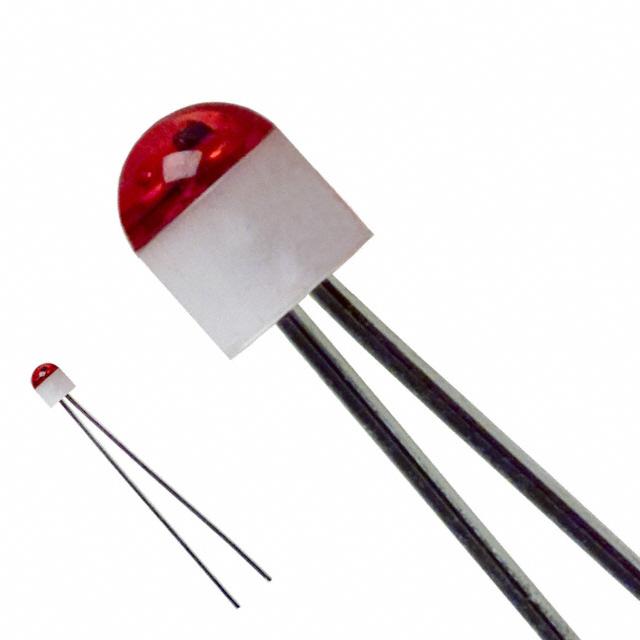

The is a round QuasarBrite™ T-2 ceramic Stem with red transparent lens, made of GaAlAs die. It is suitable for use in board/panel indication or illumination, backlighting of overlays and graphics, annunciator and control panels, keyboards and switches, telecom switches and central station equipment.
- .
- State-of-the-art, high brightness chip technology
- .
- Ceramic stem reliability
- .
- Easy-to-solder leads, tin finish
- .
- 5V at 10µA Reverse voltage
- .
- 30mA Steady current
- .
- 100mW Power dissipation
正向电压 1.7 V
波长 660 nm
发光强度 10 mcd
视角 160°
透镜样式 Non-Diffused
峰值波长 660 nm
测试电流 20 mA
正向电流 20 mA
工作温度Max 75 ℃
工作温度Min -25 ℃
安装方式 Through Hole
引脚数 2
封装 T-2
高度 2.50 mm
直径 2.00 mm
封装 T-2
颜色 Red
外观颜色 Transparent
产品生命周期 Obsolete
包装方式 Bulk
制造应用 信令, Communications & Networking, 通信与网络, Signalling, 自动化与过程控制, Automation & Process Control, Commercial, 商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
