SMM-115-01-S-D

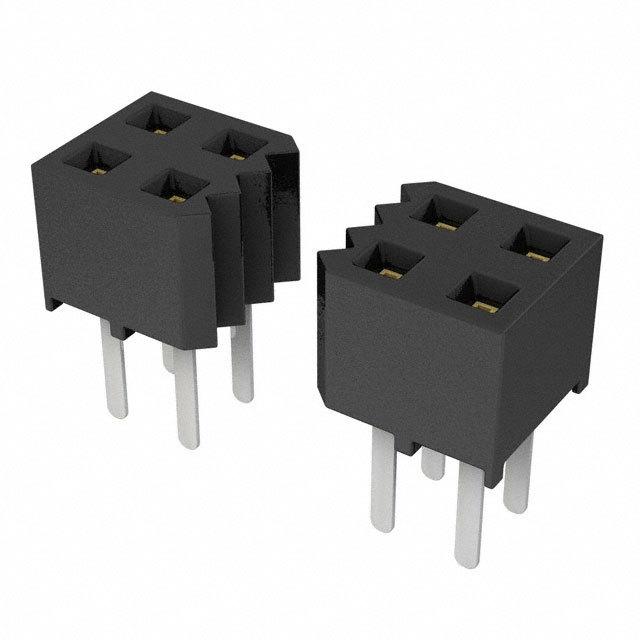

SAMTEC SMM-115-01-S-D Board-To-Board Connector, 2mm, 30Contacts, Receptacle, SMM Series, Through Hole, 2Rows

30 位置 插座 0.079"（2.00mm） 通孔 镀金

得捷:
CONN RCPT 30POS 0.079 GOLD PCB

欧时:
CONN RCPT 30POS 0.079 GOLD PCB

艾睿:
Look no further than the socket strip SMM-115-01-S-D header connector from Samtec, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 30 contacts that are made out of beryllium copper and plated with gold over nickel. Its pitch is 2 mm. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. It has a maximum voltage rating of 350 VAC. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. This product is 30 mm long, 3.56 mm tall and 4 mm deep. SMM-115-01-S-D is housed in black liquid crystal polymer. It uses the solder termination method.

Jameco:
2MM SOCKET STRIP

Verical:
Conn Socket Strip SKT 30 POS 2mm Solder ST Top Entry Thru-Hole TIGER EYE™ Tube

Newark:
# SAMTEC  SMM-115-01-S-D  Board-To-Board Connector, 2 mm, 30 Contacts, Receptacle, SMM Series, Through Hole, 2 Rows

Online Components:
Conn Socket Strip SKT 30 POS 2mm Solder ST Thru-Hole TIGER EYE™ Automotive Tube

Electro Sonic:
Conn Socket Strip SKT 30 POS 2mm Solder ST Thru-Hole TIGER EYE™ Automotive Tube
