STM32F318C8Y6TR

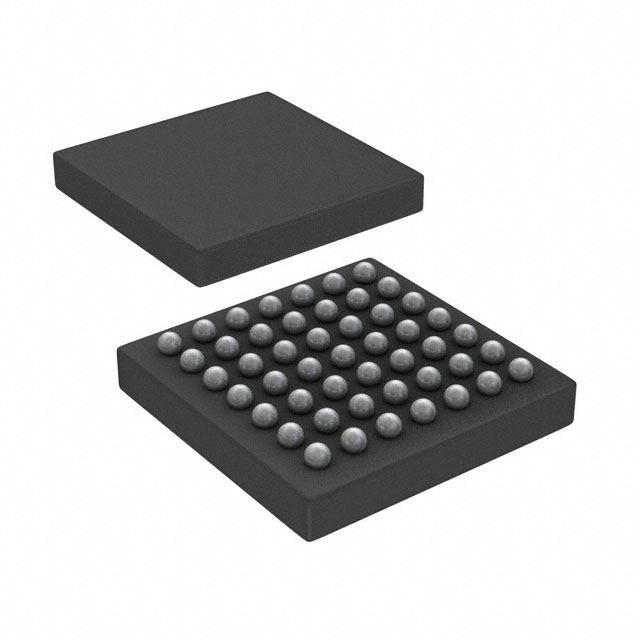

STMICROELECTRONICS  STM32F318C8Y6TR  微控制器, 32位, 模拟和DSP带FPU, ARM 皮质-M4, 72 MHz, 64 KB, 16 KB, 49 引脚, WLCSP

The is a STM32 F3 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 72MHz and embedding a floating point unit FPU, high-speed embedded memories Flash memory up to 64kB and 16kB of SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The device offer a fast 12-bit ADCs, three comparators, an operational amplifier, up to 17 capacitive sensing channels, one DAC channel, a low-power RTC, one general-purpose 32-bit timer, one timer dedicated to motor control and up to three general-purpose 16-bit timers and one timer to drive the DAC, as well as standard and advanced communication interfaces - three I²Cs, two SPIs, two I²Ss, three USARTs and a CAN.

.

CRC calculation unit

.

External POR pin

.

Low-power modes - Sleep, stop

.

VBAT supply for RTC and backup registers

.

4 to 32MHz Crystal oscillator

.

32kHz Oscillator for RTC with calibration

.

8MHz Internal RC with x 16 PLL option

.

Interconnect matrix

.

7-channel DMA Controller supporting timers, ADCs, SPIs, I²Cs, USARTs and DAC

.

Temperature sensor

.

2 Watchdog timers independent, window

.

SysTick Timer

.

Calendar RTC with alarm, periodic wakeup from stop

.

Infrared transmitter

.

Serial wire debug SWD, JTAG

.

96-bit Unique ID
