SN74AHC125DRE4

具有三态输出翻两番总线缓冲器GATES QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS

DESCRIPON

The ’AHC125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable OE input is high. When OE is low, the respective gate passes the data from the A input to its Y output.

Operating Range 2-V to 5.5-V VCC

Latch-Up Performance Exceeds 250 mA Per JESD 17

贸泽:
缓冲器和线路驱动器 Quad Bus Buff Gate With 3-State Outputs

Verical:

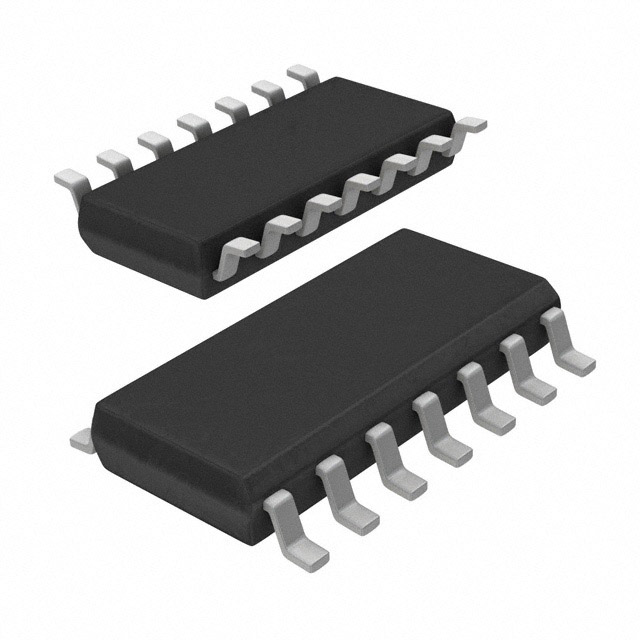

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC T/R
