SN65LVP16DRFRG4

2.5 V / 3.3 V振荡器增益级/缓冲区 2.5-V/3.3-V OSCILLATOR GAIN STAGE/BUFFERS

DESCRIPON

These four devices are high-frequency oscillator gain stages supporting both LVPECL or LVDS on the high gain outputs in 3.3-V or 2.5-V systems. Additionally, provides the option of both single-ended input PECL levels on the SN65LVx16 and fully differential inputs on the SN65LVx17.

FEATURES

• Low-Voltage PECL Input and Low-Voltage PECL or LVDS Outputs

• Clock Rates to 2 GHz

– 140-ps Output Transition Times

– 0.11 ps Typical Intrinsic Phase Jitter

– Less than 630 ps Propagation Delay Times

• 2.5-V or 3.3-V Supply Operation

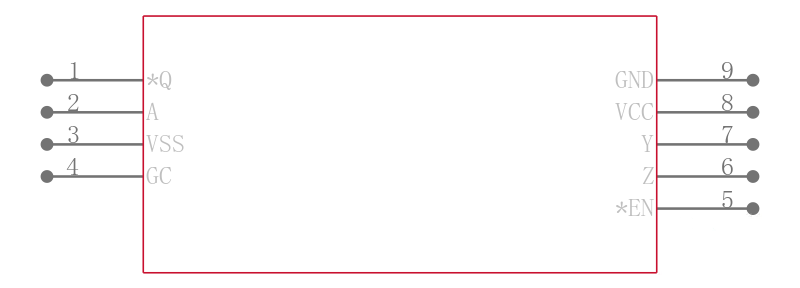

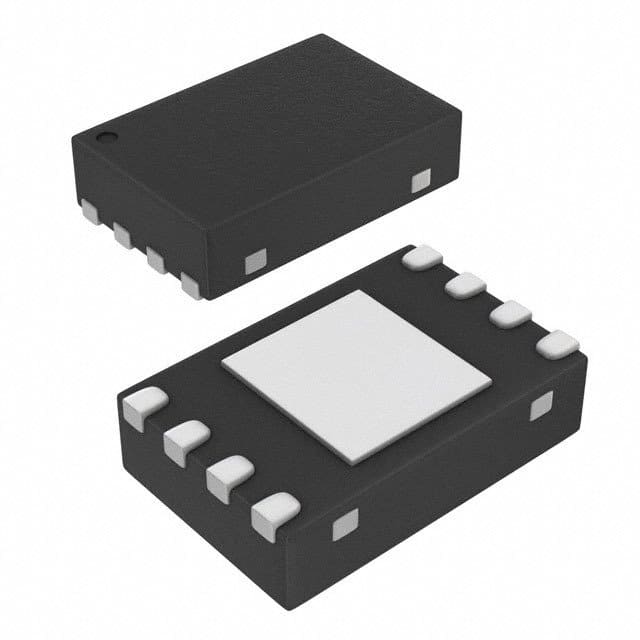

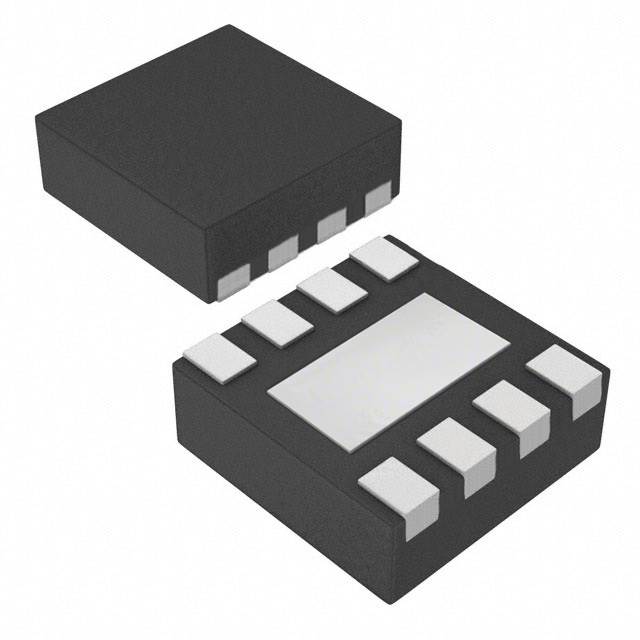

• 2-mm × 2-mm Small-Outline No-Lead Package

APPLICATIONS

• PECL-to-LVDS Translation

• Clock Signal Amplification
