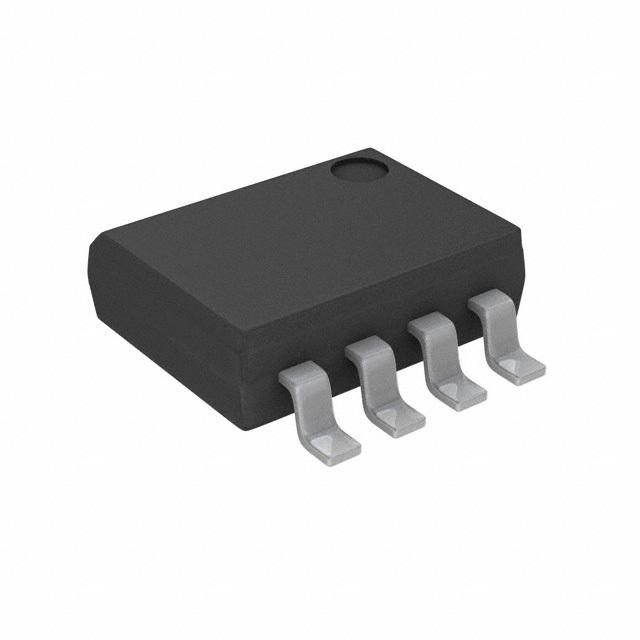

SP485EMN-L/TR

SP485E系列 10Mbps 5V 增强型 低EMI 半双工 RS-485 收发器 -NSOIC-8

DESCRIPTION

The SP481E and SP485Eare a family of half-duplex transceivers that meet the specifications of RS-485 and RS-422 serial protocols with enhanced ESD performance. The ESD tolerance has been improved on these devices to over +5kV for both Human Body Model and IEC1000-4-2 Air Discharge Method. These devices are pin-to-pin compatible with Exar"s SP481 and SP485 devices as well as popular industry standards. As with the original versions, the SP481E and SP485E feature Exar"s BiCMOS design allowing low power operation without sacrificing performance. The SP481E and SP485E meet the requirements of the RS-485 and RS-422 protocols up to 10Mbps under load. The SP481Eis equipped with a low power shutdown mode.

• +5V Only

• Low Power BiCMOS

• Driver / Receiver Enable for Multi-Drop configurations

• Low Power Shutdown mode SP481E

• Enhanced ESD Specifications:

   +/-5kV Human Body Model

   +/-15kV IEC1000-4-2 Air Discharge

   +/-8kV IEC1000-4-2 Contact Discharge

• Available in RoHS Compliant, Lead Free Packaging.
