SP208ECA-L

EXAR  SP208ECA-L  芯片, 驱动器/接收器, RS-232

DESCRIPTION

The SP207E-SP213Eare enhanced transceivers intended for use in RS-232 and V.28 serial communication. These devices feature very low power consumption and single-supply

operation making them ideal for space-constrained applications. Exar-patented 5,306,954

on-board charge pump circuitry generates fully compliant RS-232 voltage levels using small

and inexpensive 0.µF charge pump capacitors. External +2V and -2V supplies are not

required. The SP211Eand SP213Efeature a low-power shutdown mode, which reduces power supply drain to µA. SP213Eincludes two receivers that remain active during shut down to monitor for signal activity.

■  Meets All EIA-232 and ITU V.28 Specifications

■  Single +5V Supply Operation

■  3mA Typical Static Supply Current

■  4 x 0.1μF External Charge Pump Capacitors

■  Typical 230kbps Transmission Rates

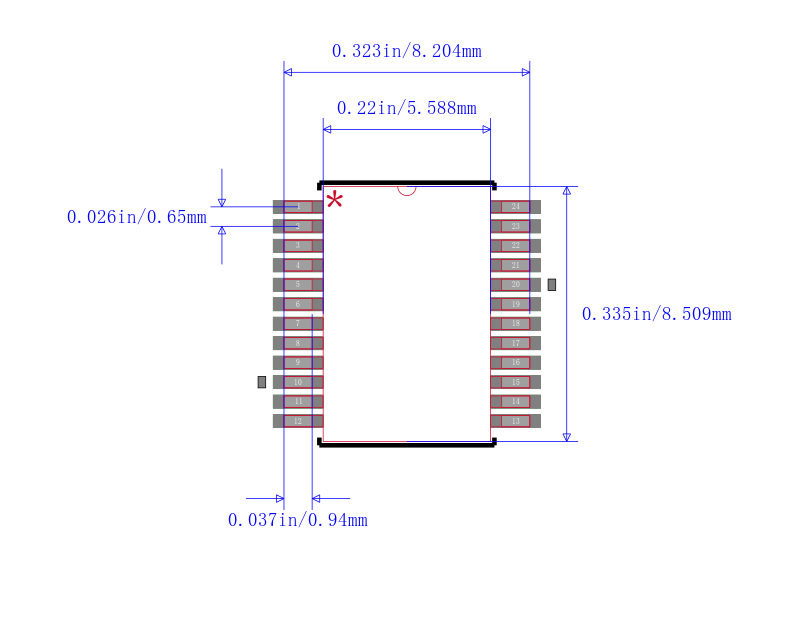

■  Standard SOIC and SSOP Footprints

■  1μA Shutdown Mode SP211E & SP213E

■  Two Wake-Up Receivers SP213E

■  Tri-State/RxEnable SP211E & SP213E

■  Improved ESD Specifications:

    +5kV Human Body Model

    +5kV IEC000-4-2 Air Discharge

    +8kV IEC000-4-2 Contact Discharge

The SP207E-SP213Edevices are pin-to-pin compatible with our previous SP207, SP208, SP2 and SP23 as well as industry-standard competitor devices. Driver output and receiver input pins are protected against ESD to over ±5kV for both Human Body Model and IEC000-4-2 Air Discharge test methods. Data rates of over 20kbps are guaranteed with 230kbps typical, making them compatible with high speed modems and PC remote-access applications.   Receivers  also  incorporate  hysteresis  for  clean  reception  of  slow  moving signals.
