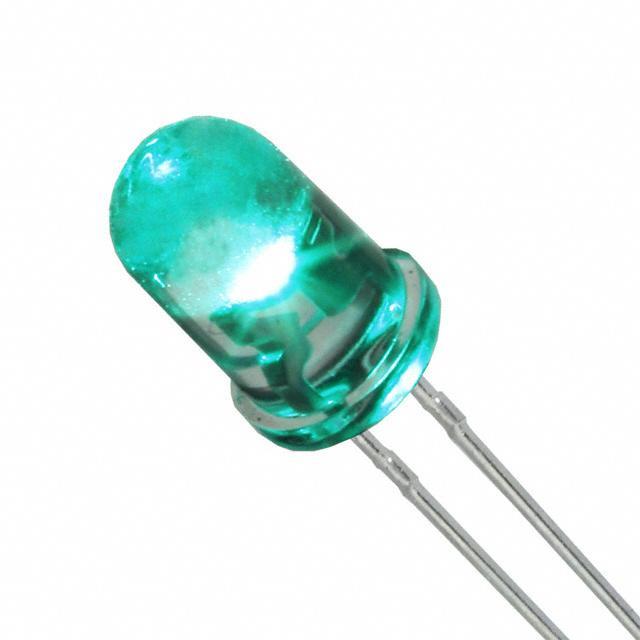

LUMEX SSL-LX5093TC. 发光二极管灯, T-5, 青绿色
** - Octo Range**
The Lumex range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of Colors and lens finishes.
额定功率 120 mW
正向电压 3.2 V
发光强度 2200 mcd
视角 20°
峰值波长 550 nm
耗散功率 120 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 4 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 120 mW
安装方式 Through Hole
引脚数 2
封装 T-1-3
高度 8.6 mm
封装 T-1-3
颜色 Turquoise
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 LED Lighting, 通信与网络, Industrial, 工业, 发光二极管照明, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 ECL99
HTS代码 8541402000
