SRP1245A-1R5M

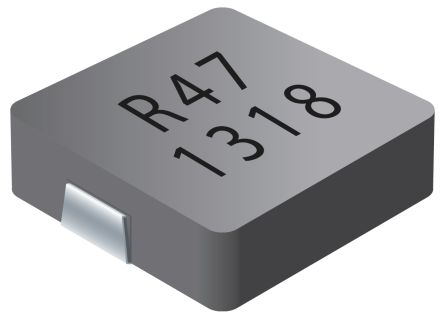

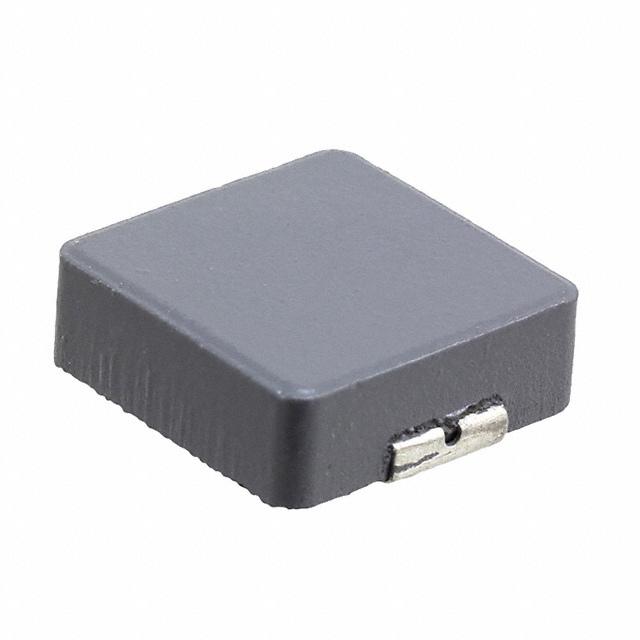

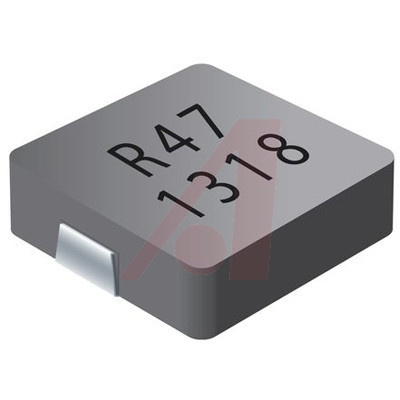

BOURNS  SRP1245A-1R5M  表面贴装功率电感器, AEC-Q200 SRP1245A系列, 1.5 µH, ± 20%, 屏蔽, 3300 µohm, 27 A

SRP1245A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1245A 系列电感器具有屏蔽结构

羰基粉芯

高饱和电流

电感范围 0.33 μH 至 18 μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、

直流-直流转换器和电源

立创商城:
1.5uH ±20% 27A 2.8mΩ

得捷:
FIXED IND 1.5UH 27A 3.3 MOHM SMD

欧时:
Bourns SRP1245A 系列 屏蔽 羰基粉芯材 1.5 μH 绕线贴片电感器 SRP1245A-1R5M, ±20%容差, 27A Idc

e络盟:
功率电感SMD, 1.5 µH, 27 A, 屏蔽, 48 A, SRP1245A 系列, 13.5mm x 12.5mm x 4.8mm

艾睿:
This power SRP1245A-1R5M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 1.5u H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 27 A with a maximum resistance of 3.3m Ohm. This product is 14 mm long, 5 mm tall and 12.8 mm deep. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 30MTyp Hz.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 1.5uH 20% SMT 1245

安富利:
Ind Power Shielded 1.5uH 20% 100KHz Carbonyl Powder 27A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 20Q-Factor Carbonyl Powder 27A 3.3mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 20Q-Factor Carbonyl Powder 27A 0.0033Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1245A-1R5M  Surface Mount Power Inductor, SRP1245A Series, 1.5 µH, 27 A, 48 A, Shielded, 3300 µohm

Online Components:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 20Q-Factor Carbonyl Powder 27A 3.3mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 20Q-Factor Carbonyl Powder 27A 0.0033Ohm DCR Automotive T/R
