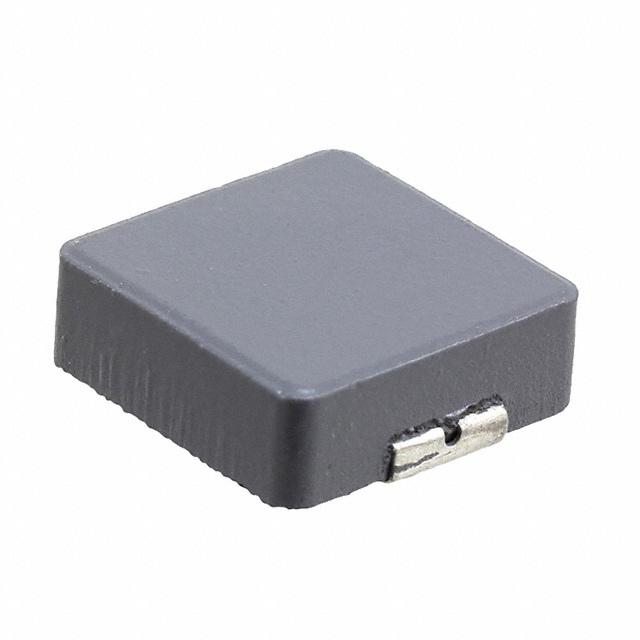

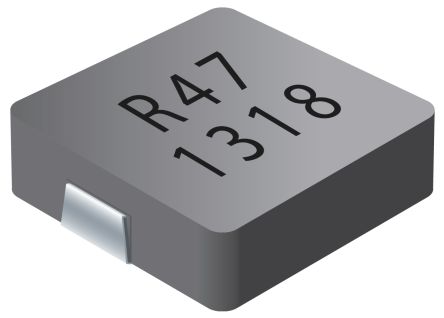

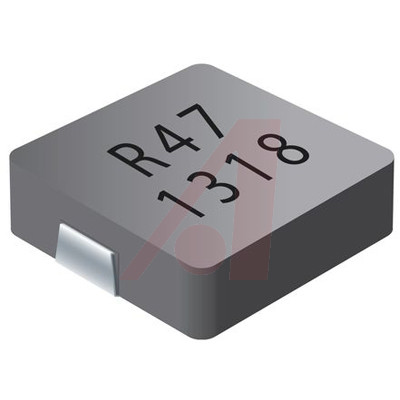

SRP1245A-6R0M

BOURNS  SRP1245A-6R0M  表面贴装功率电感器, AEC-Q200 SRP1245A系列, 6 µH, ± 20%, 屏蔽, 0.0165 ohm, 11.5 A

SRP1245A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1245A 系列电感器具有屏蔽结构

羰基粉芯

高饱和电流

电感范围 0.33 μH 至 18 μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、

直流-直流转换器和电源

立创商城:
6uH ±20% 11.5A 13mΩ

得捷:
FIXED IND 6UH 11.5A 16.5MOHM SMD

欧时:
### SRP1245A 系列磁性屏蔽式功率电感器Bourns SRP series of high current power inductors with a carbonyl powder core and are AEC-Q200 qualified.SRP1245A 系列电感器具有屏蔽结构 羰基粉芯 高饱和电流 电感范围为 0.33 至 18μH 应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流/直流转换器和电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 6 µH, 11.5 A, 屏蔽, 21.5 A, SRP1245A 系列, 13.5mm x 12.5mm x 4.8mm

艾睿:
This power SRP1245A-6R0M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 14 mm long, 5 mm tall and 12.8 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 12MTyp Hz. This device is made with wirewound technology. It has an inductance of 6u H. This SMD inductor has a maximum DC current of 11.5 A with a maximum resistance of 16.5m Ohm. It has a tolerance of 20%.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 6uH 20% SMT 1245

安富利:
Ind Power Shielded 6uH 20% 100KHz Carbonyl Powder 11.5A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 6uH 20% 100KHz 20Q-Factor Carbonyl Powder 11.5A 16.5mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 6uH 20% 100KHz 20Q-Factor Carbonyl Powder 11.5A 0.0165Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1245A-6R0M  Surface Mount Power Inductor, SRP1245A Series, 6 µH, 11.5 A, 21.5 A, Shielded, 0.0165 ohm

Online Components:
Inductor Power Shielded Wirewound 6uH 20% 100KHz 20Q-Factor Carbonyl Powder 11.5A 16.5mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 6uH 20% 100KHz 20Q-Factor Carbonyl Powder 11.5A 0.0165Ohm DCR Automotive T/R
