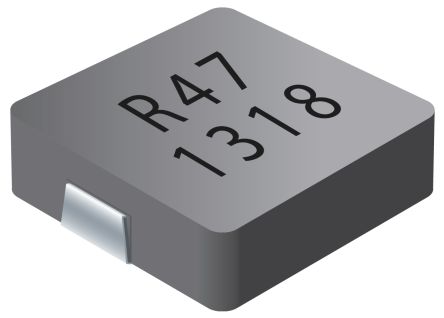

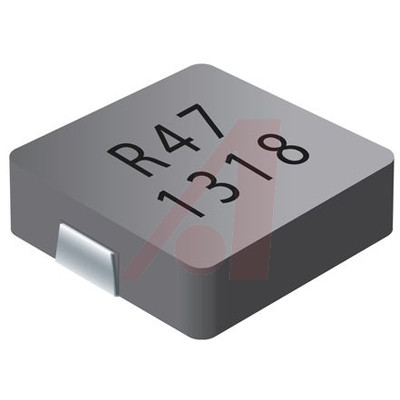

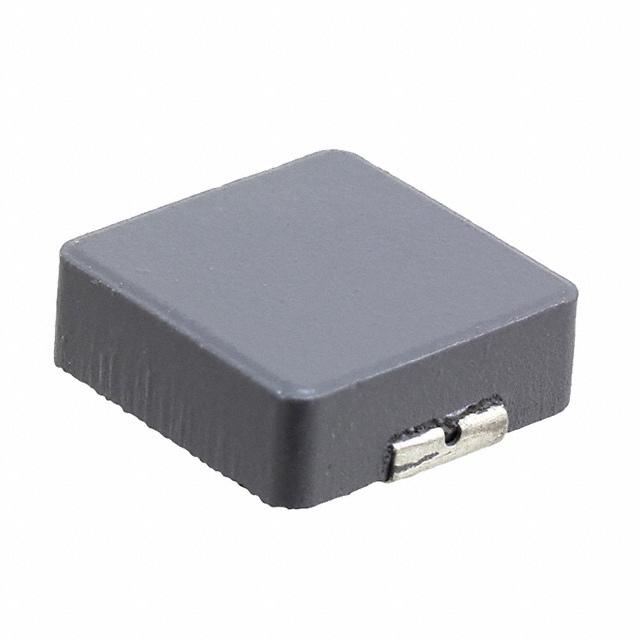

BOURNS SRP1245A-2R2M 表面贴装功率电感器, AEC-Q200 SRP1245A系列, 2.2 µH, ± 20%, 屏蔽, 5500 µohm, 20 A
SRP1245A 系列磁性屏蔽式功率器
Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。
**特点和优势:**
SRP1245A 系列电感器具有屏蔽结构
羰基粉芯
高饱和电流
电感范围 0.33 μH 至 18 μH
符合 AEC-Q200
符合 RoHS 标准且无卤
应用包括汽车系统(驾驶员辅助、信息、娱乐和照明)、
直流-直流转换器和电源
得捷:
FIXED IND 2.2UH 20A 5.5 MOHM SMD
立创商城:
2.2uH ±20% 20A 4.2mΩ
欧时:
Bourns SRP1245A 系列 屏蔽 羰基粉芯材 2.2 μH 绕线贴片电感器 SRP1245A-2R2M, ±20%容差, 20A Idc
e络盟:
功率电感SMD, 2.2 µH, 20 A, 屏蔽, 32 A, SRP1245A 系列, 13.5mm x 12.5mm x 4.8mm
艾睿:
An ideal space-saving electronic component is this power SRP1245A-2R2M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 20 A with a maximum resistance of 5.5m Ohm. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 24MTyp Hz. It has a tolerance of 20%. This product is 14 mm long, 5 mm tall and 12.8 mm deep. It has an inductance of 2.2u H.
Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 2.2uH 20% SMT 1245
安富利:
Ind Power Shielded 2.2uH 20% 100KHz Carbonyl Powder 20A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 20A 5.5mOhm DCR Automotive T/R
Verical:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 20A 0.0055Ohm DCR Automotive T/R
Newark:
# BOURNS SRP1245A-2R2M Surface Mount Power Inductor, AEC-Q200 SRP1245A Series, 2.2 H, 20%, Shielded, 5500 ohm, 20 A
Online Components:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 20A 5.5mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 20A 0.0055Ohm DCR Automotive T/R
容差 ±20 %
电感 2.2 µH
自谐频率 24 MHz
电感公差 ±20 %
测试频率 0.1 MHz
电阻DC) 0.0055 Ω
工作温度Max 150 ℃
工作温度Min -40 ℃
电阻DC Max 0.0055 Ω
安装方式 Surface Mount
封装 13.5mm x 12.5mm x 4.8mm
长度 13.5 mm
高度 5 mm
封装 13.5mm x 12.5mm x 4.8mm
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
