SR3P-05C

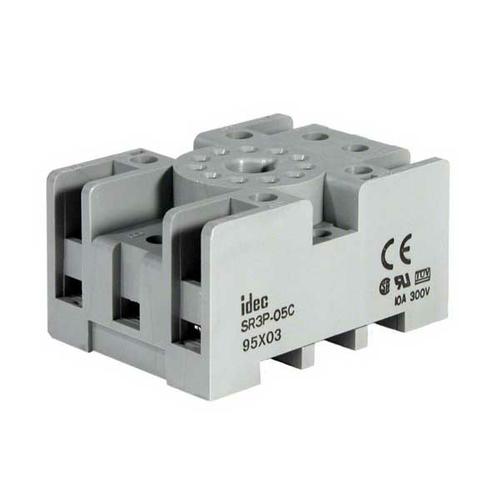

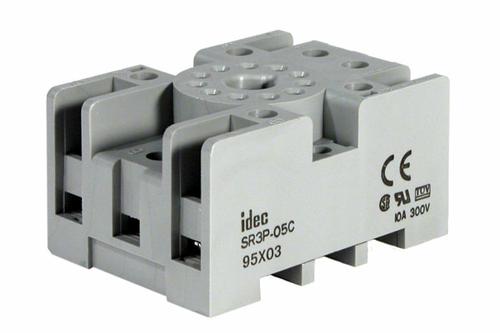

IDEC  SR3P-05C  继电器插座, SMD, 10A, 300V, 11针

Relay and Timer Socket, Dielectric Strength 2000 VAC

Snap-mount sockets are designed to mount on BNDN-1000 mounting rail. The built-in mounting clip eliminates mounting hardware and reduces mounting time by eighty percent. For spacing between adjoining sockets, use SA-406 DIN rail spacer. Spacers

.

* :** 0.197" in width. Spacing can be adjusted according to the amount of spacers added. To prevent sideward movement, use BNL-5 end clip at each end of socket row.

**

To Mount:

.

* Place socket on mounting rail and press down.

**

To Remove:

.

* Pull clip out with screwdriver and lift socket.

100 Megohms minimum insulation resistance and UL 94V-0 material grade.
