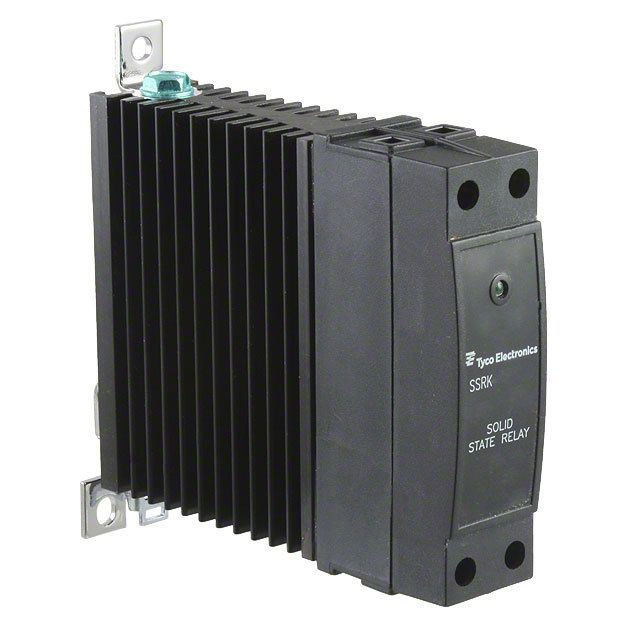

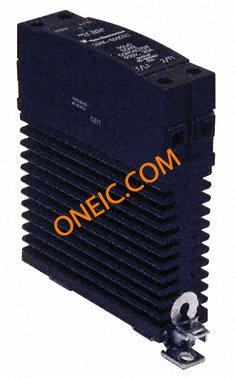

Relay SSR 12mA 32V AC-DC-IN 30A 660V AC-OUT
固态 SPST-NO（1 Form A） 带集成散热器的 SSR
立创商城:
SSRK-600D30
得捷:
SSR RELAY SPST-NO 30A 48-660V
艾睿:
Solid State Relay 12mA 32V AC/DC-IN 30A 660V AC-OUT
Allied Electronics:
SPST-NO SSR Screw DIN Rail Panel Mount, Zero Crossing Paired SCR, 30 A, 32 V dc
Chip1Stop:
Relay SSR 12mA 32V AC/DC-IN 30A 660V AC-OUT
Verical:
Relay SSR 12mA 32V AC/DC-IN 30A 660V AC-OUT
MASTER:
Solid State Relay 12mA 32V AC/DC-IN 30A 660V AC-OUT
Online Components:
Relay SSR 12mA 32V AC/DC-IN 30A 660V AC-OUT
Electro Sonic:
Solid State Relay 12mA 32V AC/DC-IN 30A 660V AC-OUT
额定电流 30 A
触点类型 SPST-NO
负载电流 30 A
输入电流 12 mA
隔离电压 4000 v
输入电压Max 32 V
输入电压Min 4 V
输出电压Max 660 V
输入电流Min 12 mA
负载电流Max 30 A
负载电流Min 0.15 A
工作温度Max 80 ℃
工作温度Min -40 ℃
工作电压Min 48 VAC
工作电压Max 660 VAC
输入电压 32 V
安装方式 Screw, Screw Terminals, DIN Rail
封装 SSR with Integrated Heat Sink
长度 81.3 mm
高度 99 mm
封装 SSR with Integrated Heat Sink
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
