SP22E-5K

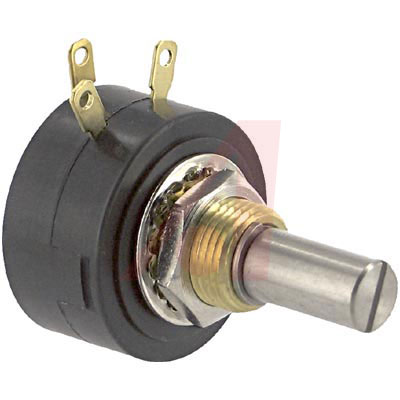

ETI SYSTEMS  SP22E-5K  旋转电位器, 导电塑料, SP22E系列, 5 kohm, 线性, 1 转, 1 W, 面板

Brass bushing, stainless steel slotted shaft and gold plated terminals.

.

* Electrical** ** Angle:** 320°. ** Mechanical Angle:** 320°. ** Operating Temperature Range:** -55°C to +105°C. ** Power Rating:** 1 watt. ** Starting Torque:** 0.8 oz. in. maximum. ** Stop Strength:** 84 oz. in. ** Options:** Tighter tolerances, other resistance values, shaft modifications, sealed construction, multiple gangs, continuous rotation, center tap.

** SP22E.** Co-molded conductive plastic element gives superior performance over film type elements. ** Life Shaft Revolutions:** 10,000,000. ** Resistance tolerance:** 10%. ** Linearity:** 1%. ** Insulation Resistance:** 1000 Megohms @ 500 VDC. ** Dielectric strength:** 500 VAC. ** Output Smoothness:** Below 0.1%.

** SW22E.** Wirewound element. ** Life Shaft Revolutions:** 500,000. ** Resistance tolerance:** 3%. ** Linearity:** 0.5%. ** Insulation Resistance:** 1000 Megohms @ 1000 VDC. ** Dielectric strength:** 1000 VAC.

* Datasheet Available On-Line
