S912XHZ512F1VAG

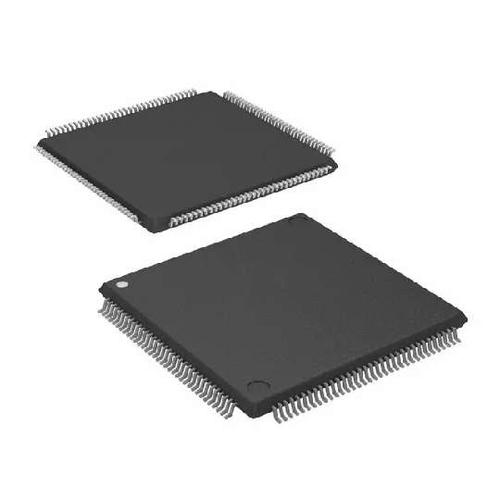

NXP  S912XHZ512F1VAG  微控制器, 16位, AEC-Q100, HCS12X, 80 MHz, 512 KB, 32 KB, 144 引脚, LQFP

Overview

The industry"s first instrumentation cluster MCU with on-chip TFT display driver revamps graphic display capabilities in the low-end automotive dashboard realm.

Our MC9S12XHZ family drives up to six analog gauges, dot matrix displays, LCDs and high-resolution color TFT displays.

S12XHZ complements the S12HZ family"s high integration of systems and features:

* More memory

* More CAN channels

* More IIC channels

* More stepper stall detectors SSD

* Faster bus frequency

* XGATE coprocessor

MoreLess

## Features

### Key Features

* XGATE coprocessor capable for building virtual peripherals and boosting overall performance

* TFT display software driver capability using the XGATE

* Up to six gauges/motor high-current outputs

### Additional Features

* S12X CPU @ 40 MHz bus speed

* XGATE

* EEPROM

* LCD driver 32 frontplanes and four backplanes

* Pulse-width modulator motor controller with 24 high-current drivers

* Six stepper stall detectors SSD

* Low-power/low-noise Pierce oscillator

* Non-multiplexed external bus interface EBI

* Analog-to-digital converter ADC 16-channel 12-bit resolution and 3μs conversion time

* Enhance capture timer ECT

* Periodic interrupt timer PIT

* CAN 2.0A/B modules MSCAN

* Serial peripheral interface SPI

* Serial communication interface SCI

* Inter-IC module IIC

* Background debug module BDM debugger xDBG

* On-chip voltage regulator
