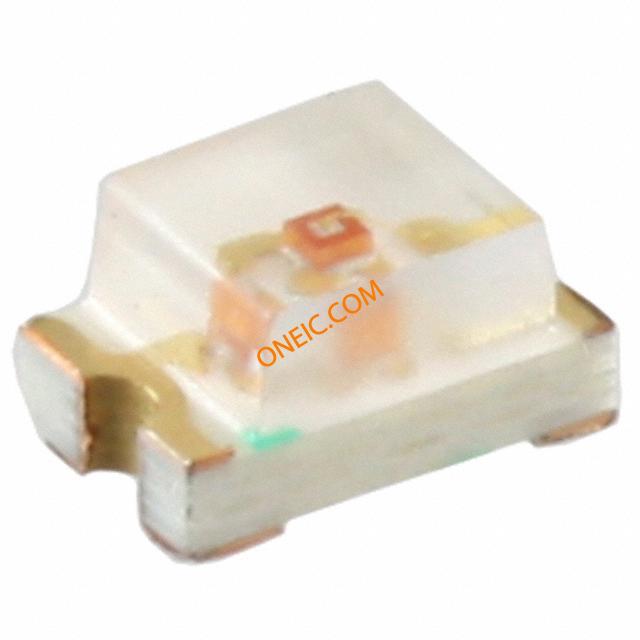

BIVAR SM0805UYC 发光二极管, 黄色, 60MCD, 588NM
** 0603 Package SMT s**
Bivar surface mount 0603 package LEDs can be used in almost any lighting or indication application. The miniature package is ideal for small scale applications such as general indication and backlighting. Low power consumption and excellent long life reliability are suitable for battery powered equipment. A wide variety of wavelength and intensity combinations are available to meet any illumination need.
额定功率 78 mW
正向电压 2.1 V
波长 588 nm
发光强度 60 mcd
视角 140°
峰值波长 593 nm
耗散功率 78 W
测试电流 20 mA
正向电流 20 mA
正向电流Max 30 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.2 mm
高度 0.80 mm
封装公制 2012
封装 0805
颜色 Yellow
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM0805UYC Bivar | 当前型号 | 当前型号 |
CMD17-21VYC/TR8 芝加哥微型照明 | 功能相似 | SM0805UYC和CMD17-21VYC/TR8的区别 |
