S9S08SG8E2CTG

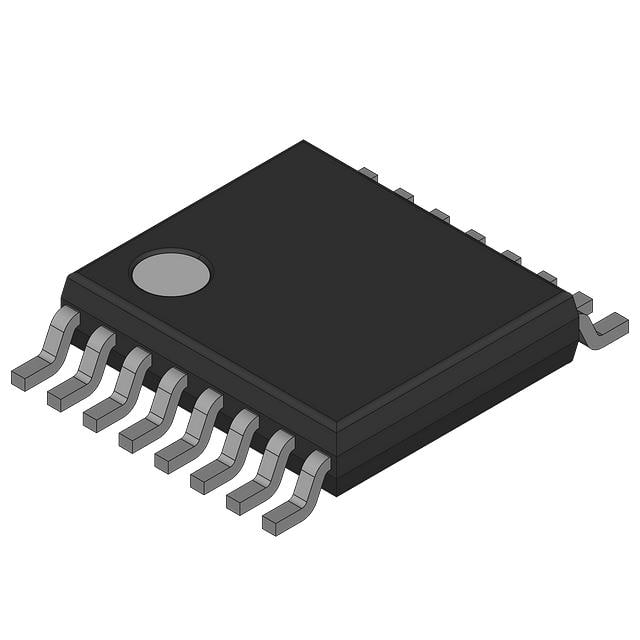

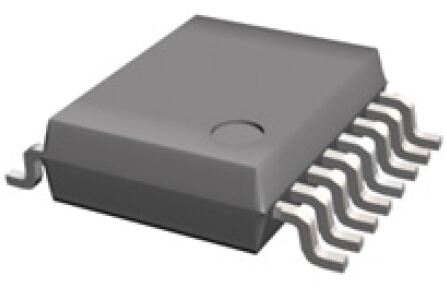

NXP  S9S08SG8E2CTG  微控制器, 8位, SG系列, AEC-Q100, S08SG, 40 MHz, 8 KB, 512 Byte, 16 引脚, TSSOP

Overview

’s 8-bit S08SG family of microcontrollers MCUs is an entry-level to mid-range offering designed for LIN slave, general market, high-temperature up to 150 °C ambient and space-constrained applications. The SG is easy to design into an application because of its non-intrusive, single-wire background debug module BDM, which allows you to read registers without stopping execution on the chip. This reduces development time, since changes can be made while in application and in real time. It also allows debug access in constrained locations. The SG helps to lower cost, save board space and improve quality with on-chip components by eliminating the need for external crystal, low-voltage interrupt LVI circuit, voltage regulator, I/O mux, watchdog circuit, analog-to-digital converter ADC and development tools.

The SG family is also pin-compatible with the S08EL and S08SL families. This flexibility allows for upgrading and downgrading without major board redesign or long and expensive development times.

MoreLess

## Features

* 40 MHz core

* 4-32 KB flash range

* 256B-1 KB RAM range

* 1 universal asynchronous receiver/transmitter UART, 1 serial peripheral interface SPI, 1 inter-integrated circuit IIC

* Up to 16-channel, 10-bit ADC

* 1 analog comparator

* In-circuit emulation ICE with real-time bus capture

* Single-wire background debug module BDM

* Four package options

* This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch

## Features Comparison Table

### S08SG Family Differences

| S08SG32| S08SG16| S08SG8| S08SG4

| | |

| | |

| | |

| | |
