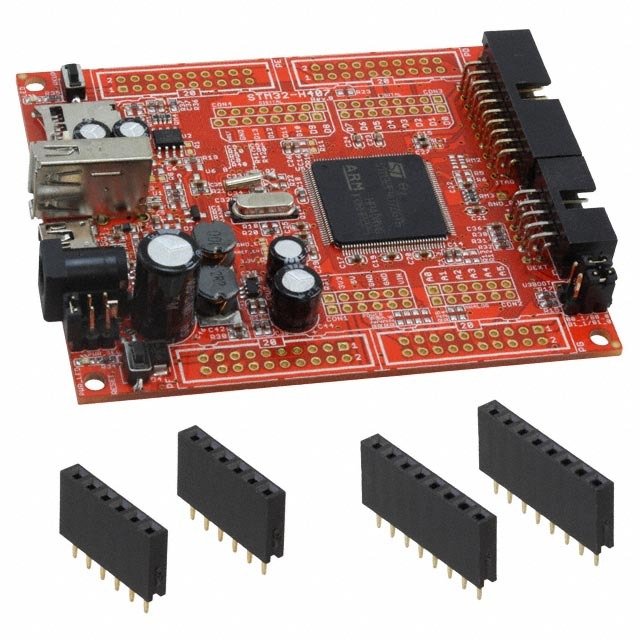

STM32-H407

STM32F407ZGT6 Microcontroller Development Board 0.032768MHz/12MHz/168MHz CPU 196KB RAM 1Mb Flash

STM-H407 is a low-cost entry board for developing custom applications with STM32F407ZGT6 Cortex M4 microcontrollers from ST. This board has plenty of resources and all GPIO ports are available on extension connectors, an ARDUINO compatible platform connector is also available.

.

JTAG connector with ARM 2x10 pin layout for programming/debugging

.

UEXT connector

.

USB host

.

USB-OTG

.

SD-card connectivity

.

Input DCDC power supply which allows operation from 6-16VDC source

.

4 full 20-pin Ports with the external memory bus for add-on modules

.

Reset and User buttons

.

Power and User LEDs

.

Arduino platform with unsoldered headers
