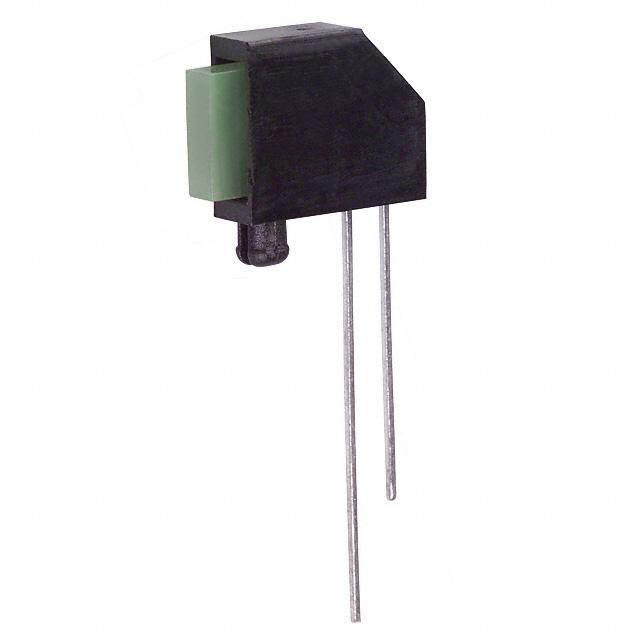

LUMEX SSF-LXH25780GD 指示灯, LED, PCB, 2.5X7MM, 绿色, 2.2V
LED Uni-Color Green 565nm 2-Pin
得捷:
LED 2.5X7MM RECT RA GRN DIFFPCMT
贸泽:
LED 电路板指示器 LED CircBrdIndicat 2.5mm x 7mm Green
e络盟:
指示灯, LED, PCB, 2.5X7MM, 绿色, 2.2V
艾睿:
LED Uni-Color Green 565nm 2-Pin
Verical:
LED Uni-Color Green 565nm 2-Pin
Newark:
# LUMEX SSF-LXH25780GD Circuit Board Indicator, Green, Through Hole, 2.5mm x 7mm, 20 mA, 9 mcd
MASTER:
LED Uni-Color Green 565nm 2-Pin
Online Components:
LED Uni-Color Green 565nm 2-Pin
Electro Sonic:
LED Uni-Color Green 565nm 2-Pin
Win Source:
LED 2.5X7MM RECT RA GRN DIFFPCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
正向电压 2.2 V
波长 565 nm
发光强度 9 mcd
视角 110°
透镜样式 Diffused
峰值波长 565 nm
耗散功率 105 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.6 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
额定电压 2.2 V
安装方式 Through Hole
引脚数 2
长度 13.9 mm
宽度 3.6 mm
高度 10.16 mm
颜色 Green
工作温度 -40℃ ~ 85℃
外观颜色 Green
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SSF-LXH25780GD Lumex 鲁美科思 | 当前型号 | 当前型号 |
CMS01G Visual Communications Company | 功能相似 | SSF-LXH25780GD和CMS01G的区别 |
LGM676-N2Q1-24 欧司朗 | 功能相似 | SSF-LXH25780GD和LGM676-N2Q1-24的区别 |
