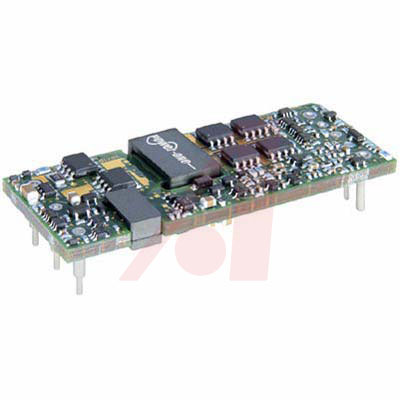

PwrSup; DC-DC Converter; Out 1.2VDC; In 36to 75VDC; Thru-Hole; Open-Frame; Switching
**SQ Series**
The new SemiQ™ Family of- .
- *50 W One-Eighth Brick** DC/DC converters from di/dt provides a high efficiency single output in a size that is only 60% of industry-standard quarter bricks, while preserving the same pinout and functionality. With a standard pinout and trim equations, the SQ24 and SQ48 Series converters are perfect drop-in replacements for existing quarter brick designs. Inclusion of this converter in new designs can result in significant board space and cost savings. The device is also available in a surface mount package.
- .
- *20 A SQM48 Series** converters of the SemiQ™ Family provide thermal performance in high temperature environments that exceeds most competitors" 20-25 A quarter bricks.
- .
- *30 A SQE48T Series** converters of the SemiQ™ Family provide thermal performance in high temperature environments that exceeds most competitors" 30 A quarter bricks. Specifically designed for operation in systems that have limited airflow and increased ambient temperatures, the SQE48T converters utilize the same pin-out and functionality of the industry-standard quarter bricks.
* Industry-Standard Quarter Brick Pinout
* Meets Basic Insulation Requirements of EN60950
* Outputs Available in 3.3, 2.5, 1.8, 1.5, and 1.2 V SQ48 and SQE48T
* UL 60950 Recognized in US and Canada and DEMKO Certified Per IEC/EN 60950 SQE48T Pending
* Output Voltage Trim Range: +10%/–20% Except 1.2 V and 1.0 V Outputs
* Fully Protected
* Meets Conducted Emissions Requirements of FCC Class B and EN 55022 Class B with External Filter
* All Materials Meet UL 94, V-0 Flammability Rating
* On-Board Input Diff. LC-Filter SQM48 and SQE48T
* Start-Up into Pre-Biased Load SQM48 and SQE48T
* No Minimum Load Required SQM48 and SQE48T
* Fixed Frequency Operation SQM48 and SQE48T
* Remote Output Sense SQM48 and SQE48T
* Positive or Negative Logic ON/OFF Option SQM48 and SQE48T
SQ48/SQ24
* Extremely Small Footprint: 0.896 × 2.30 2.06 In. 2 , 40% Smaller Than Conventional Quarter Bricks
* High Efficiency — No Heatsink Required
* Profile: 0.26" 6.6 mm
* Weight: 0.53 Oz. 15 g
**SQM48**
* Delivers Up to 20 A
* Profile: 0.28" 7.1 mm
* Weight: 0.66 Oz. 18.5 g
**SQE48T**
* Delivers Up to 30 A
* RoHS Compliant April 2005
* Weight: 0.72 Oz 20.6 g
