SPB106-AP-1

Wifi Brd w/Rf Antenna 802.11B/g

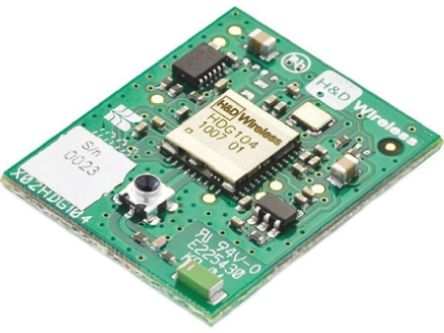

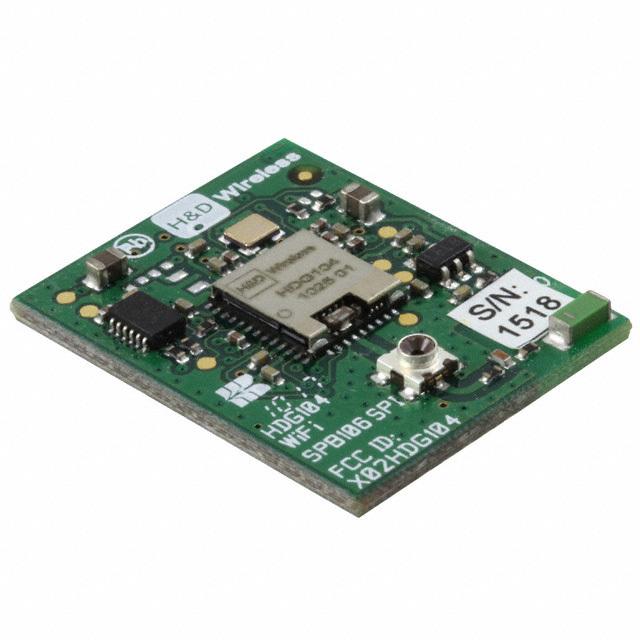

The is a SPB106 WiFi 802.11b+g SMD WiFi board. The SPB106 is a SMD module with the HDG104 WLAN system in package, SIP module and all peripheral components required. It is a complete solution designed to be surface mount on any host system needing a complete WiFi solution. SPB106 enables a cost efficient ultra low power, high performance and feature rich client solution. It provides up to 54Mbit/s data rate when operating in the OFDM mode and up to 11Mbit/s data rate when operating in the DSSS/CCK mode. The host interface supports SPI communication when used in the 10pin RF header connection WLESS and SDIO when used in a custom board with the AVR32UC3A3.

.

QPSK, 16QAM, 64QAM DBPSK, DQPSK, CCK, OFDM with BPSK modulation

.

WEP and AES hardware encryption accelerator up to 128bits

.

Chip Antenna and connector for external antenna optional mounted on the board

.

Low power consumption due to efficient class AB PA design

.

On chip RF filter for the ISM band 2.4GHz

.

Advanced power management for optimum power consumption at varying load

.

Bluetooth coexistence support

.

Power supply 3.3V from EVK board

.

Small footprint 25.8mm X 20.6mm

HDG104 withstands ESD voltages up to 2000 V tested with HBM human body model according to JESD22-A114 and up to 300 V tested with MM machine model according to JESD22-A115.
