连接器, SSW 系列
4 Position Receptacle Connector Through Hole
欧时:
.100" Tiger Buy Socket Strip
立创商城:
2.54mm
得捷:
CONN RCPT 4POS 0.1 GOLD PCB
e络盟:
连接器, SSW 系列
艾睿:

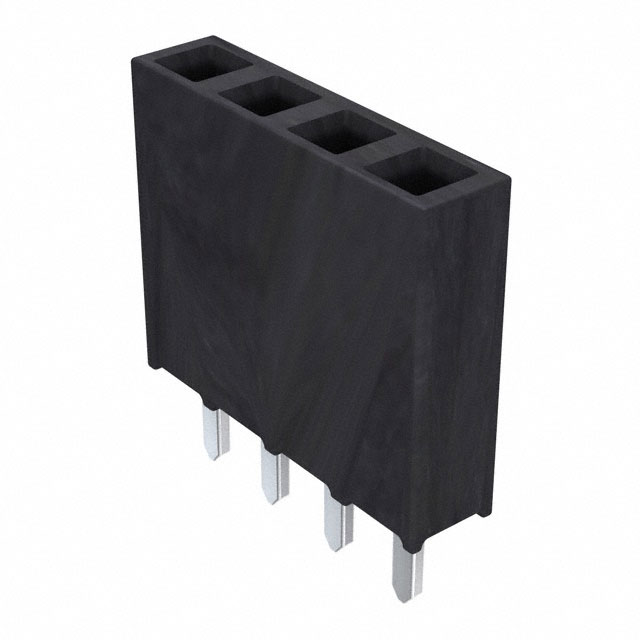

Safety is an important concern when designing electronic devices. Samtec&s;s socket strip SSW-104-01-F-S header connector helps protect your equipment from accidental shortages. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This is a 1-row connector. This device has a maximum current rating of 5.7 A/contact. This connector has an operating temperature of -55 to 125 °C. SSW-104-01-F-S is housed in black liquid crystal polymer. It uses the solder termination method. This product is 10.67 mm long, 8.51 mm tall and 2.41 mm deep.
安富利:
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Top Entry Thru-Hole Tube
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SSW-104-01-F-S Samtec 申泰电子 | 当前型号 | 当前型号 |
SSW-104-01-G-S 申泰电子 | 完全替代 | SSW-104-01-F-S和SSW-104-01-G-S的区别 |
SSW-104-01-S-S 申泰电子 | 完全替代 | SSW-104-01-F-S和SSW-104-01-S-S的区别 |
SSW-104-01-SM-S 申泰电子 | 完全替代 | SSW-104-01-F-S和SSW-104-01-SM-S的区别 |
