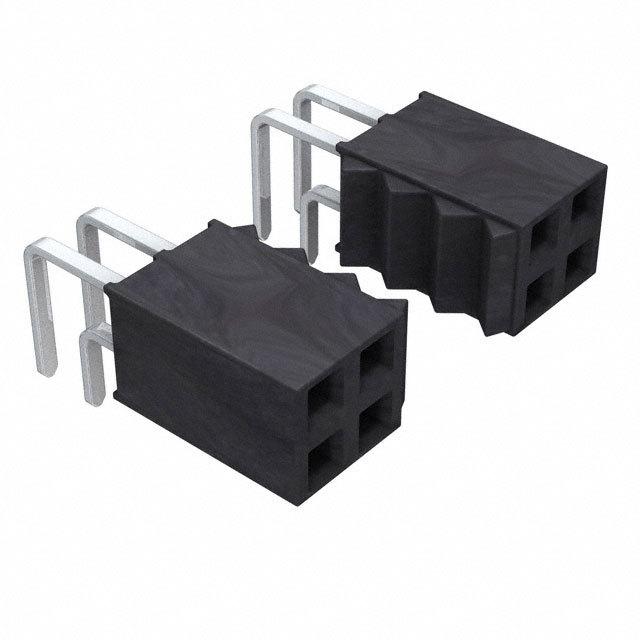

SAMTEC SSW-107-02-S-D-RA Board-To-Board Connector, 2.54mm, 14Contacts, Receptacle, SSW Series, Through Hole, 2Rows
14 Position Receptacle Connector 0.100" 2.54mm Through Hole, Right Angle Gold
得捷:
CONN RCPT 14POS 0.1 GOLD PCB R/A
艾睿:
Look no further than the socket strip SSW-107-02-S-D-RA header connector from Samtec, a great tool to use when board-to-board interconnects is required. This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a right angle body orientation. This is a 2-row connector. It has a socket type gender. This device has a maximum current rating of 5.7 A/contact. It uses the solder termination method. SSW-107-02-S-D-RA is housed in black liquid crystal polymer. This product is 18.29 mm long, 4.95 mm tall and 12.57 mm deep. This connector has an operating temperature of -55 to 125 °C.
Newark:
# SAMTEC SSW-107-02-S-D-RA Board-To-Board Connector, 2.54 mm, 14 Contacts, Receptacle, SSW Series, Through Hole, 2 Rows
Electro Sonic:
Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole Layer
触点数 14
极性 Female
触点电镀 Gold
额定电流 5.7A/触头
排数 2
针脚数 14
拔插次数 100
额定电流Max 5.7A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 550 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 18.3 mm
宽度 8.51 mm
高度 4.95 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
