SSW-106-01-S-S

Conn Socket Strip SKT 6POS 2.54mm Solder ST Thru-Hole

6 位置 插座 0.100"（2.54mm） 通孔 镀金

得捷:
CONN RCPT 6POS 0.1 GOLD PCB

欧时:
.100" Tiger Buy Socket Strip

艾睿:

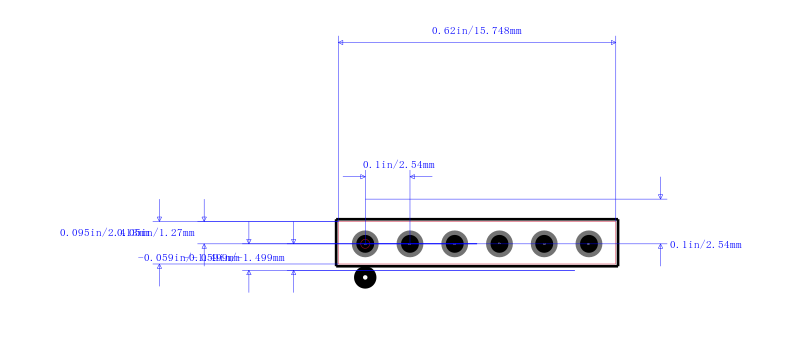

As an added safety precaution, the socket strip SSW-106-01-S-S header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This device has a maximum current rating of 5.7 A/contact. SSW-106-01-S-S is housed in black liquid crystal polymer. This product is 15.75 mm long, 8.51 mm tall and 2.41 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  SSW-106-01-S-S  .025 SOCKET STRIPS
