SSW-107-01-F-D

连接器, 母, 14 触芯

Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole

欧时:
2.54mm Tiger Buy SSW PCB socket, 14P

得捷:
CONN RCPT 14POS 0.1 GOLD PCB

e络盟:
连接器, 母, 14 触芯

艾睿:

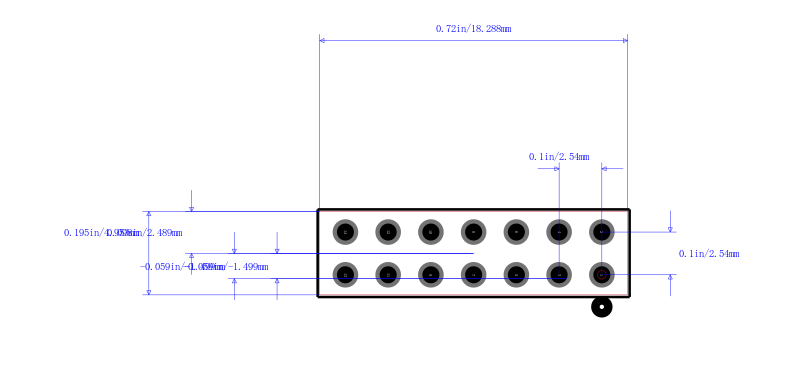

This socket strip SSW-107-01-F-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. This device has a maximum current rating of 5.7 A/contact. It uses the solder termination method. SSW-107-01-F-D is housed in black liquid crystal polymer. This product is 18.29 mm long, 8.51 mm tall and 4.95 mm deep. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Top Entry Thru-Hole Tube

Newark:
# SAMTEC  SSW-107-01-F-D  .025 SOCKET STRIPS

Online Components:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole

Electro Sonic:
Conn Socket Strip SKT 14 POS 2.54mm Solder ST Thru-Hole
