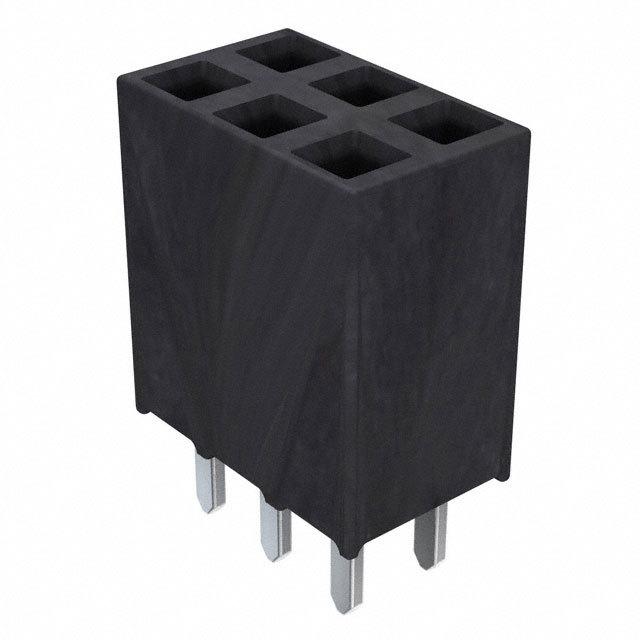

SSW-103-01-T-D

SAMTEC SSW-103-01-T-D Board-To-Board Connector, 2.54mm, 6Contacts, Receptacle, SSW Series, Through Hole, 2Rows

6 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 6POS 0.1 TIN PCB

欧时:
.100" Tiger Buy Socket Strip

艾睿:
Safety is an important concern when designing electronic devices. Samtec&s;s socket strip SSW-103-01-T-D header connector helps protect your equipment from accidental shortages. This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with matte tin over nickel. It has a maximum voltage rating of 550 VAC. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 5.7 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8.13 mm long, 8.51 mm tall and 4.95 mm deep. This connector has an operating temperature of -55 to 105 °C. SSW-103-01-T-D is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  SSW-103-01-T-D  Board-To-Board Connector, 2.54 mm, 6 Contacts, Receptacle, SSW Series, Through Hole, 2 Rows
