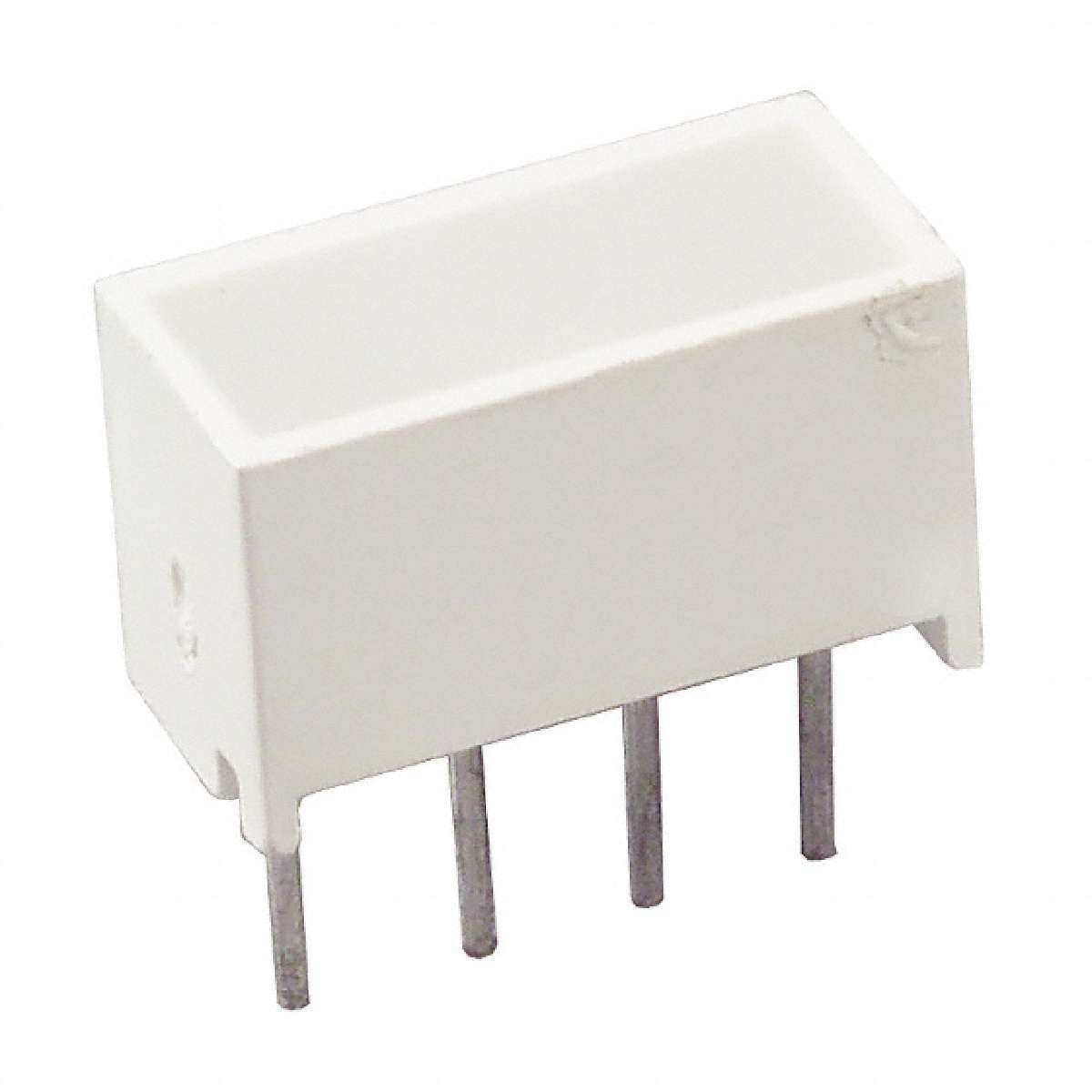

Lumex 灯条 绿色 高压 LED, 25 mcd, 3.81mm高字符
LED 电路板指示器 LED Circuit Board Indicator 灯条 - 单灯，SIP 绿色 散射，白色 2.2V 25mA 矩形，带平顶 10.00mm x 5.00mm 通孔
得捷:
LED LT BAR 5X10MM 2CHIP GRN DIFF
艾睿:
Uni-Color LED Light Bar Green 565nm 4-Pin
Allied Electronics:
8.89 x 3.81mm 2-Chip Light Bar 565nm Green Milky White Epoxy
Verical:
Uni-Color LED Light Bar Green 565nm 4-Pin
Newark:
# LUMEX SSB-LX2500SGW LED Bar Graph Array, Green, 20 mA, 2.2 V, 25 mcd, 2 LED"s
Electro Sonic:
Uni-Color LED Light Bar Green 565nm 4-Pin
Win Source:
LED LT BAR 5X10MM 2CHIP GRN DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, White 2.2V 25mA Rectangle with Flat Top 10.00mm x 5.00mm Through Hole
触点数 4
正向电压 2.2 V
波长 565 nm
发光强度 25 mcd
视角 160°
透镜样式 Diffused
峰值波长 565 nm
耗散功率 105 W
高度尺寸特征 8.89 mm
测试电流 20 mA
正向电流 25 mA
正向电压Max 2.6 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
额定电压 2.2 V
安装方式 Through Hole
引脚数 4
封装 Epoxy
长度 9.94 mm
宽度 4.86 mm
高度 6.1 mm
封装 Epoxy
颜色 Green
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
