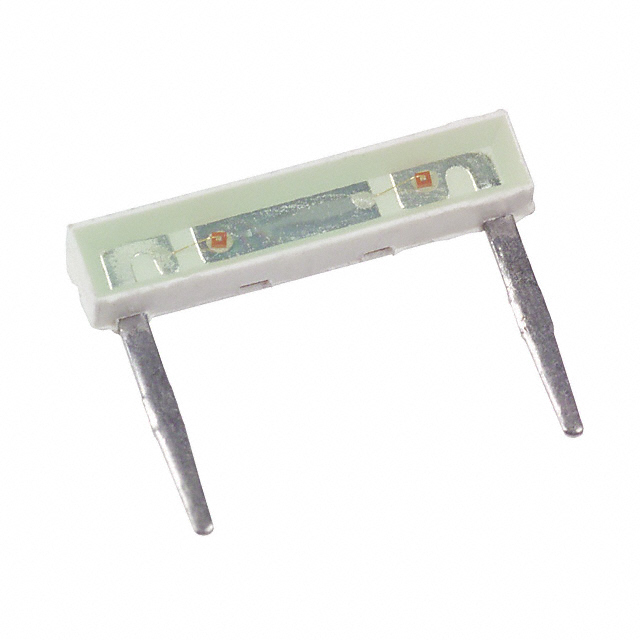

LUMEX SSB-LX02GC LED Bar Graph Array, Green, 4.4V, 20mA, 2, 10mcd, 9mm x 2mm
The is a 565nm green 2-chip LCD Illuminator with green transparent lens.
- .
- -20 to 70°C Operating temperature
- .
- Gold wire bonding
得捷:
LED SIDE LOOKER 2-CHIP GREEN CLR
贸泽:
Standard LEDs - Through Hole 9mm x 2mm Green
Verical:
LED Uni-Color Green 565nm 2-Pin
Newark:
# LUMEX SSB-LX02GC LED Bar Graph Array, Green, 20 mA, 4.4 V, 10 mcd, 2 LED"s, 9mm x 2mm
MASTER:
LED Light Bars Uni-Color
Online Components:
LED Uni-Color Green 565nm 2-Pin
Electro Sonic:
LED Light Bars Uni-Color
Win Source:
LED SIDE LOOKER 2-CHIP GREEN CLR / LED Circuit Board Indicator LED Circuit Board Indicator 1 High x 2 Wide Green x 2 Clear 4.4V 25mA Rectangle with Flat Top Through Hole, Right Angle
额定功率 105 mW
供电电流 25 mA
正向电压 4.4 V
波长 565 nm
发光强度 10 mcd
视角 160°
透镜样式 Non-Diffused
峰值波长 565 nm
耗散功率 105 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 5.2 V
正向电流Max 25 mA
耗散功率Max 105 mW
额定电压 4.4 V
电源电压 4.4 V
安装方式 Through Hole
引脚数 2
封装 Radial - 2 Lead
长度 9 mm
宽度 2 mm
高度 2 mm
封装 Radial - 2 Lead
颜色 Green
工作温度 -20℃ ~ 70℃
外观颜色 Transparent
产品生命周期 Active
包装方式 Bulk
制造应用 Computers & Computer Peripherals, Signalling, Sensing & Instrumentation, Industrial, Consumer Electronics, Automation & Process Control, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
