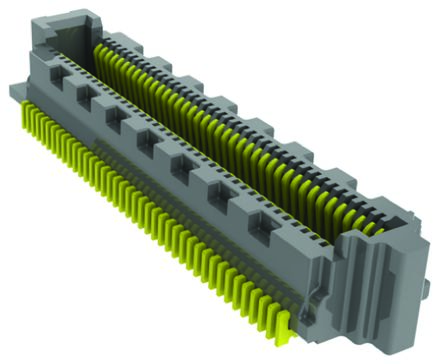

SS4-50-3.50-L-D-K-TR

Samtec SS4系列 100路 0.4mm节距 2行 直 表面贴装 PCB 插座, 板对板

100 位置 插口，外罩触点 表面贴装型 镀金

欧时:
### Ultra Fine 0.4mm Pitch, Low Profile Socket Strips - SS4 SeriesSS4 series ultra fine 0.4mm pitch, board to board low profile dual row socket strips with a PCB space saving slim body design. The insulator of these SMT ultra fine 0.4mm pitch, low profile socket strips is made from black LCP and the Razor Beam ™ contacts, which are ideal for high speed and rugged applications, are made from phosphor bronze with a 0.25μm gold plating on the contact area and a matte tin plating on the tail. These SS4 series high speed SMT board-to-board low profile socket strips have a 1mm contact swipe and are polarized as standard with undercut retention notches that click when the contacts engage and increase withdrawal force. Part numbers SS4-xx-3.00-x-x-x-xx have an above board height of 3.50mm. Part numbers SS4-xx-3.50-x-x-x-xx have an above board height of 4.00mm.### 0.4mm Board-to-Board Headers and Sockets - Samtec

立创商城:
SS4-50-3.50-L-D-K-TR

得捷:
CONN SOCKET 100POS SMD GOLD

e络盟:
堆叠电路板连接器

艾睿:
Conn Fine Pitch Connector SKT 100 POS 0.4mm Solder ST SMD T/R

安富利:
Conn Fine Pitch Connector SKT 100 POS 0.4mm Solder ST SMD T/R
