SS-114-T-2-N参数规格_中文资料_数据手册PDF

SS-114-T-2-N概述

Precision Screw Machined 2.54mm Socket Strips - SS SeriesSS series board to board through hole single row precision screw machined socket strips with a 2.54mm pitch, 3.18mm tail length and a non-flush design. The body of these SS series board-to-board PCB screw machined socket strips is made from black glass filled polyester and the contacts are made from beryllium copper with a choice of tin or gold plating. The temperature range at which these SS series PCB through hole mount precision screw machined socket strips can be used is -55 to +125°C. Part numbers SS-XXX-T-X-X have 0.76μm gold plated contacts and a tin shell. Part numbers SS-XXX-TT-X-X have tin plated contacts and tin plated shell.### 注These SS series PCB board-to-board machined socket strips mate with the following: TS series precision machined terminal strips - see stock number 765-6388 typically. BBS series machine board stacking strips - see stock number 766-6458 typically. BBL series machine board stacking strips - see stock number 766-6398 typically.### 2.54 mm 板对板和线对板 - Samtec

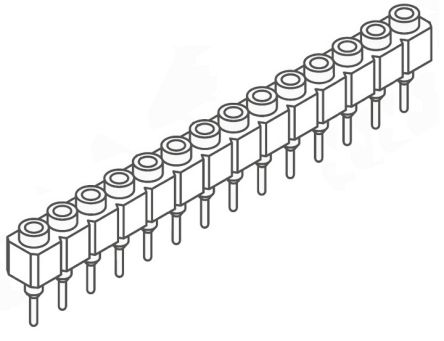

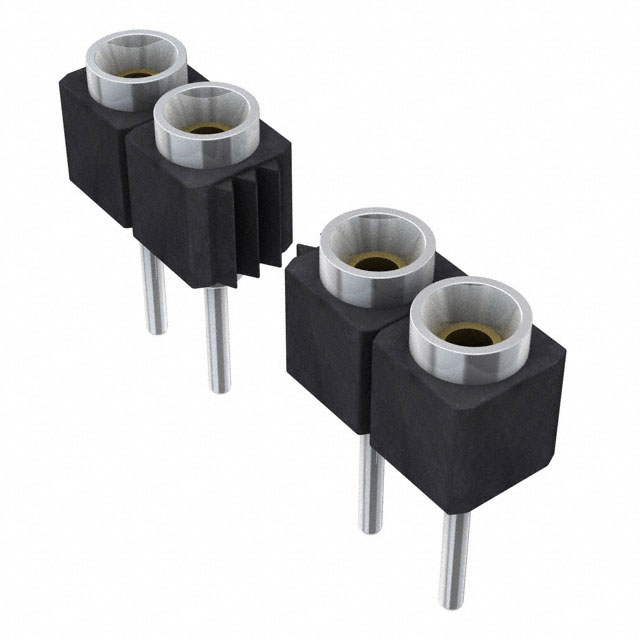

Precision Screw Machined 2.54mm Socket Strips - SS Series

SS series board to board through hole single row precision screw machined socket strips with a 2.54mm pitch, 3.18mm tail length and a non-flush design. The body of these SS series board-to-board PCB screw machined socket strips is made from black glass filled polyester and the contacts are made from beryllium copper with a choice of tin or gold plating. The temperature range at which these SS series PCB through hole mount precision screw machined socket strips can be used is -55 to +125°C.

Part numbers SS-XXX-T-X-X have 0.76μm gold plated contacts and a tin shell.

Part numbers SS-XXX-TT-X-X have tin plated contacts and tin plated shell.

### 注

These SS series PCB board-to-board machined socket strips mate with the following:

TS series precision machined terminal strips - see stock number 765-6388 typically.

BBS series machine board stacking strips - see stock number 766-6458 typically.

BBL series machine board stacking strips - see stock number 766-6398 typically.

SS-114-T-2-N中文资料参数规格

技术参数

触点数 14

极性 Female

触点电镀 Gold

额定电流 1 A

排数 1

针脚数 14

接触电阻 10.0 mΩ

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 35.6 mm

宽度 2.54 mm

高度 3.30 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Beryllium Copper

工作温度 -55℃ ~ 125℃

外壳材质 Plastic

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买SS-114-T-2-N

型号： SS-114-T-2-N

制造商： Samtec 申泰电子

描述：Precision Screw Machined 2.54mm Socket Strips - SS Series SS series board to board through hole single row precision screw machined socket strips with a 2.54mm pitch, 3.18mm tail length and a non-flush design. The body of these SS series board-to-board PCB screw machined socket strips is made from black glass filled polyester and the contacts are made from beryllium copper with a choice of tin or gold plating. The temperature range at which these SS series PCB through hole mount precision screw machined socket strips can be used is -55 to +125°C. Part numbers SS-XXX-T-X-X have 0.76μm gold plated contacts and a tin shell. Part numbers SS-XXX-TT-X-X have tin plated contacts and tin plated shell. ### 注 These SS series PCB board-to-board machined socket strips mate with the following: TS series precision machined terminal strips - see stock number 765-6388 typically. BBS series machine board stacking strips - see stock number 766-6458 typically. BBL series machine board stacking strips - s
