SS-01GP概述

Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 125VAC 30VDC 0.08N Thru-Hole

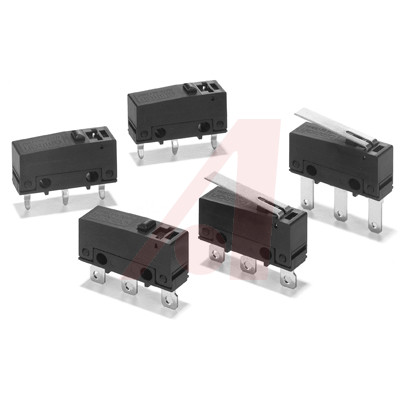

** SS Series Compatible Mounting with a Simple Construction and Easy-To-Use Design Concept**

* Insert Molded Base Provides Enhanced Resistance to Flux

* Switch Rating of 3 A at 125 VAC Possible with a Single-Leaf Movable Spring. Models for Micro Loads with Gold Crossbar Contact Are Also Available

* Long Mechanical Life 1,000,000 Operations

* Internal Lever Provides Increased Durability and Sensitivity

* Solder, Quick Connect Terminals #110, and PCB Terminals Are Available, Including Even-Pitched PCB Terminals

* RoHS Compliant

SS-01GP中文资料参数规格

技术参数

接触器类型 Pin Plunger

额定电流 100 mA

方向 Vertical

触点类型 SPDT

额定电流Max 0.1A @125VAC, 30VDC

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压 30 VDC

额定电压DC Max 30 V

额定电压AC Max 125 V

封装参数

安装方式 Screw Terminals

外形尺寸

长度 19.8 mm

宽度 6.4 mm

高度 16.3 mm

物理参数

触点材质 Gold Alloy

工作温度 -25℃ ~ 85℃

其他

产品生命周期 200000 Cycles

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536507000

数据手册

在线购买SS-01GP

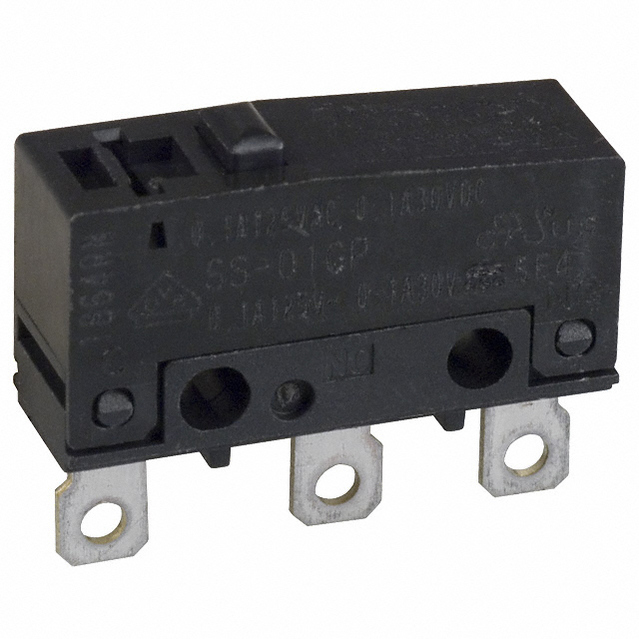

型号： SS-01GP

描述：Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 125VAC 30VDC 0.08N Thru-Hole

替代型号SS-01GP
