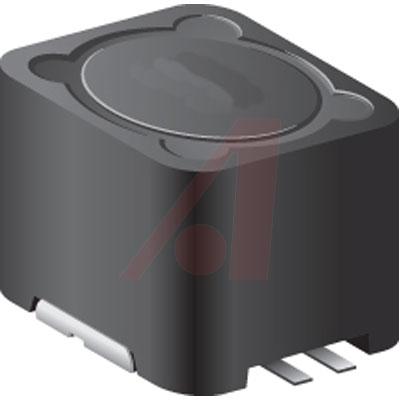

SRR1210A-331M

BOURNS  SRR1210A-331M  表面贴装功率电感器, AEC-Q200 SRR1210A系列, 330 µH, ± 20%, 屏蔽, 0.45 ohm, 1.4 A

**Features:

**

* Shielded Construction

* Inductance Range: 1 to 1000 μH

* Heating Current Up to 11 A

* Dimensions: 12 × 12 × 10 mm

* AEC-Q200 Qualified**

Applications:

**

* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting

* DC/DC Converters

* Power Supplies

得捷:
FIXED IND 330UH 1.4A 450MOHM SMD

e络盟:
功率电感SMD, 330 µH, 1.4 A, 屏蔽, 1.2 A, SRR1210A 系列, 12mm x 12mm x 10mm

艾睿:
This power SRR1210A-331M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1.8MTyp Hz. This SMD inductor has a maximum DC current of 1.4Typ A with a maximum resistance of 450m Ohm. It has an inductance of 330u H. This product is 12.5 mm long, 10 mm tall and 12.5 mm deep. It has a tolerance of 20%. This device utilizes wirewound technology.

Allied Electronics:
SMD Shieled Power Inductor; 330uH; 20%; SRR1210A

安富利:
Ind Power Shielded 330uH 20% 796KHz 14Q-Factor Ferrite 1.4A T/R
