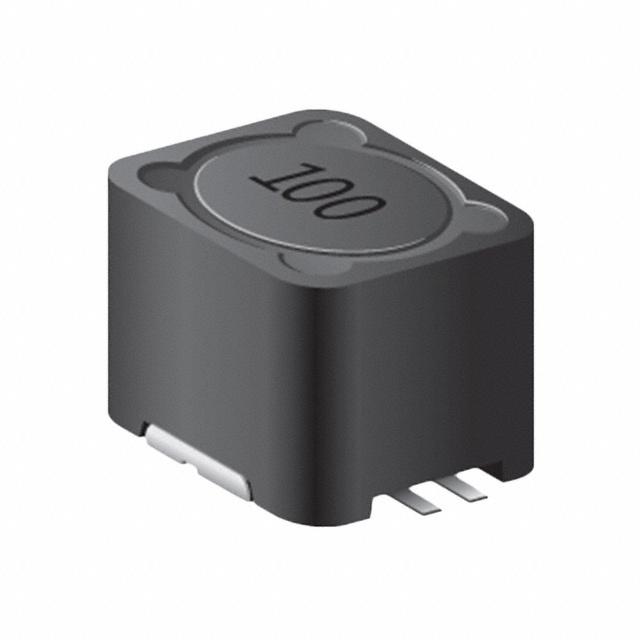

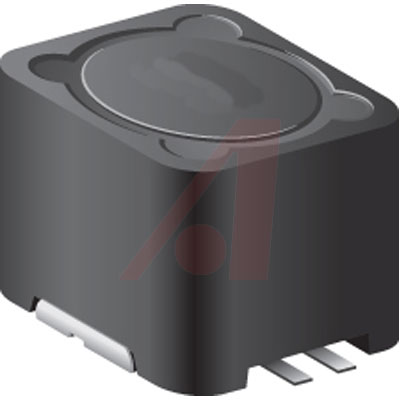

SRR1210A-821M

BOURNS  SRR1210A-821M  表面贴装功率电感器, AEC-Q200 SRR1210A系列, 820 µH, ± 20%, 屏蔽, 1.32 ohm, 850 mA

**Features:

**

* Shielded Construction

* Inductance Range: 1 to 1000 μH

* Heating Current Up to 11 A

* Dimensions: 12 × 12 × 10 mm

* AEC-Q200 Qualified**

Applications:

**

* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting

* DC/DC Converters

* Power Supplies

得捷:
FIXED IND 820UH 850MA 1.32OHM SM

贸泽:
Fixed Inductors 820uH 20% SMD 1210 AEC-Q200

e络盟:
功率电感SMD, 820 µH, 850 mA, 屏蔽, 750 mA, SRR1210A 系列, 12mm x 12mm x 10mm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRR1210A-821M surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 850mA typ with a maximum resistance of 1.32 Ohm. It has an inductance of 820u H. This product is 12.5 mm long, 10 mm tall and 12.5 mm deep. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 850KTyp Hz.

Allied Electronics:
SMD Shieled Power Inductor; 820uH; 20%; SRR1210A

安富利:
Ind Power Shielded 820uH 20% 796KHz 6Q-Factor Ferrite 850mA T/R
