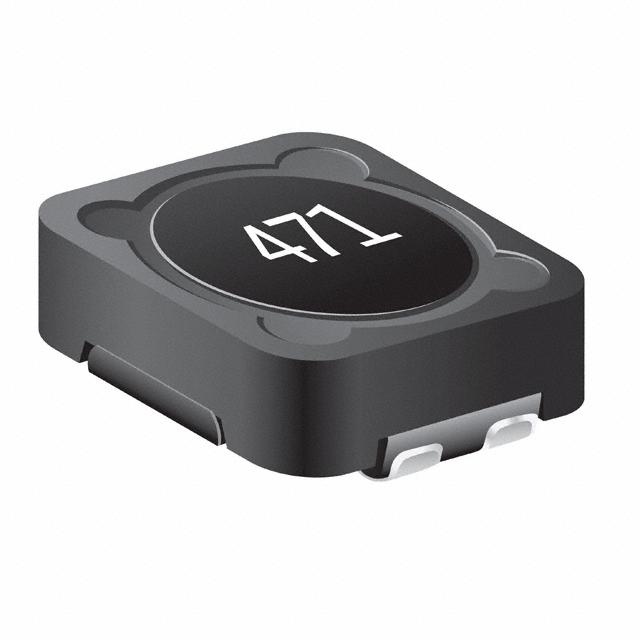

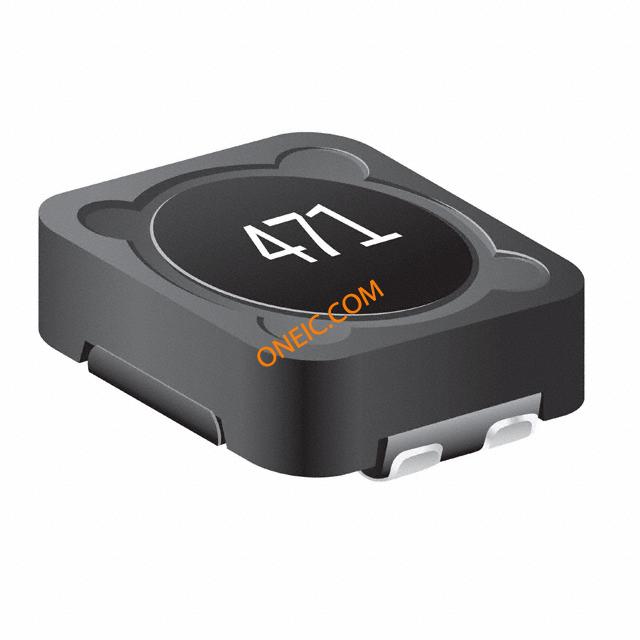

耦合电感 0.33uH 20% SMD 0703
Inductor Power Shielded Wirewound 0.33uH/1.32uH 20% 100KHz Ferrite 6.19A/3.1A 9.2mOhm/40mOhm DCR T/R
得捷:
INDUCT ARRAY 2 COIL 330NH SMD
贸泽:
耦合电感 0.33uH 20% SMD 0703
艾睿:
Inductor Power Shielded Wirewound 0.33uH/1.32uH 20% 100KHz Ferrite 6.19A/3.1A 9.2mOhm/40mOhm DCR T/R
Chip1Stop:
Inductor Power Shielded Wirewound 0.33uH/1.32uH 20% 100KHz Ferrite 6.19A/3.1A 9.2mOhm/40mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 0.33uH/1.34uH 20% 100KHz Ferrite 6.19A/3.1A 0.0092Ohm/0.04Ohm DCR T/R
Newark:
# BOURNS SRF0703-R33M Inductor, Power, 330 nH, 20%, 9200 µohm, 6.19 A, 7.6mm x 7.6mm x 3.4mm
MASTER:
Inductor Power Shielded Wirewound 0.33uH/1.32uH 20% 100KHz Ferrite 6.19A/3.1A 9.2mOhm/40mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 0.33uH/1.32uH 20% 100KHz Ferrite 6.19A/3.1A 9.2mOhm/40mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 0.33uH/1.32uH 20% 100KHz Ferrite 6.19A/3.1A 9.2mOhm/40mOhm DCR T/R
额定电流 6.19 A
容差 ±20 %
电感 330 nH
自谐频率 100 kHz
共振频率 100 kHz
电感公差 ±20 %
测试频率 0.1 MHz
电阻DC） ≤20 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 9.2 mΩ
安装方式 Surface Mount
引脚数 4
封装 Nonstandard
长度 7.6 mm
宽度 7.6 mm
高度 3.6 mm
封装 Nonstandard
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
